At Buitink Technology, we understand the challenges associated with home extensions, especially the need to efficiently and effectively separate the construction area from the living spaces. Traditional wooden dust walls are cumbersome, time-consuming to set up, and require a significant amount of materials.

To address these issues, we have developed an innovative solution: the inflatable dust wall.

Features and Benefits

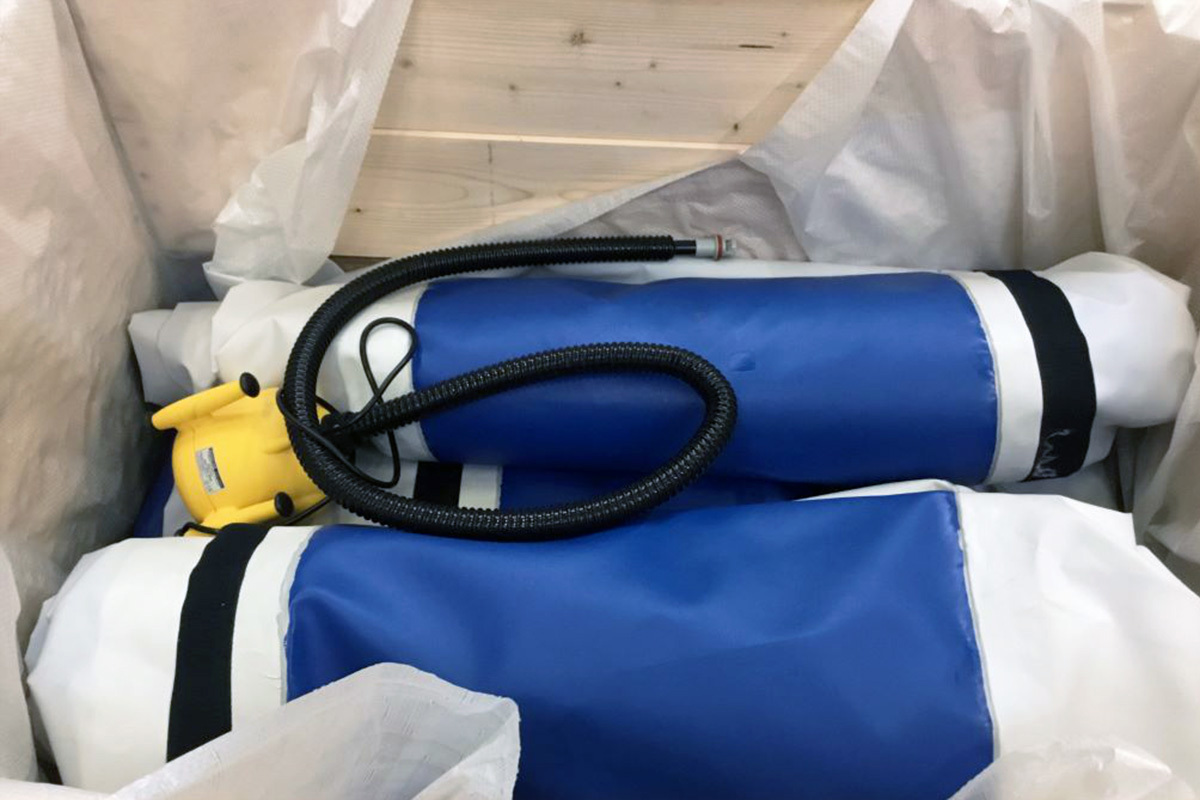

• The inflatable fabric wall is lightweight, compact when packed, and easy to transport in a standard delivery van.
• The walls are available in a wide range of dimensions, making them suitable for various construction scenarios.
• The construction is made from robust materials and is designed for intensive use in construction environments.

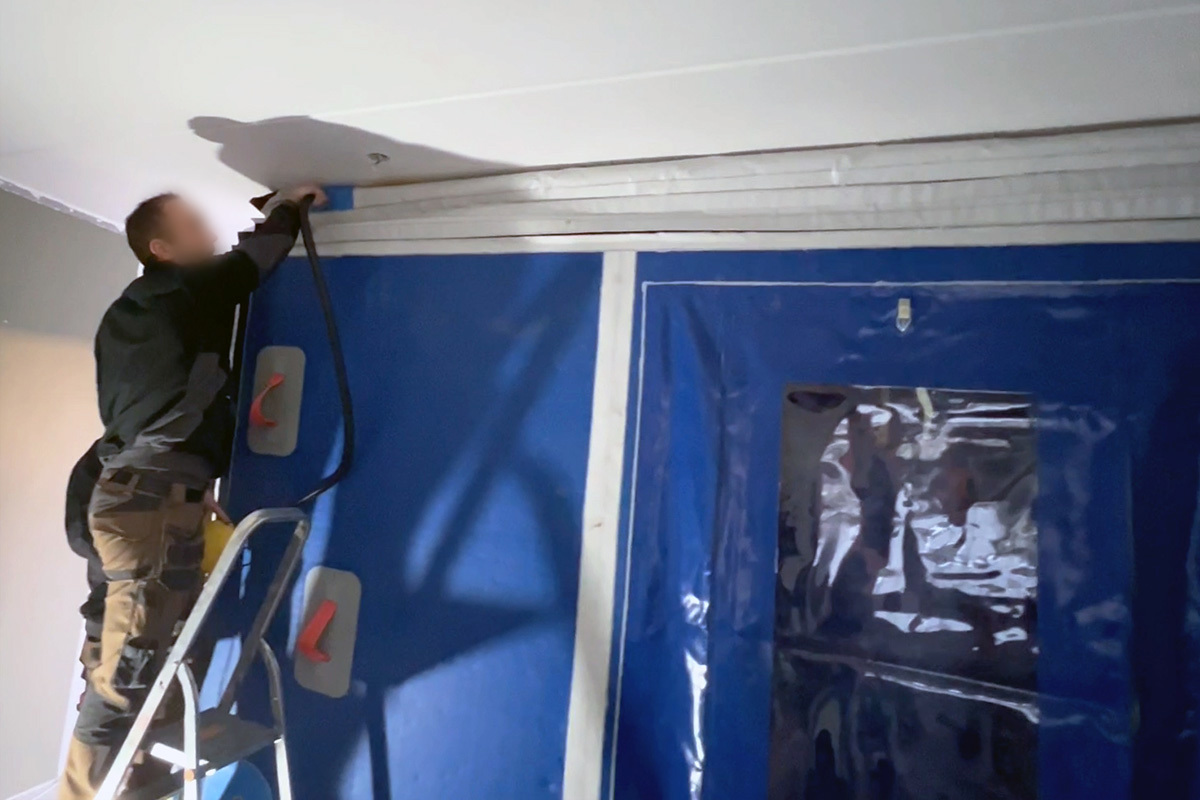

• The fabric wall can be installed quickly and does not require complex assembly or heavy equipment.
• The double-walled design provides not only dust containment but also protection against wind and driving rain.

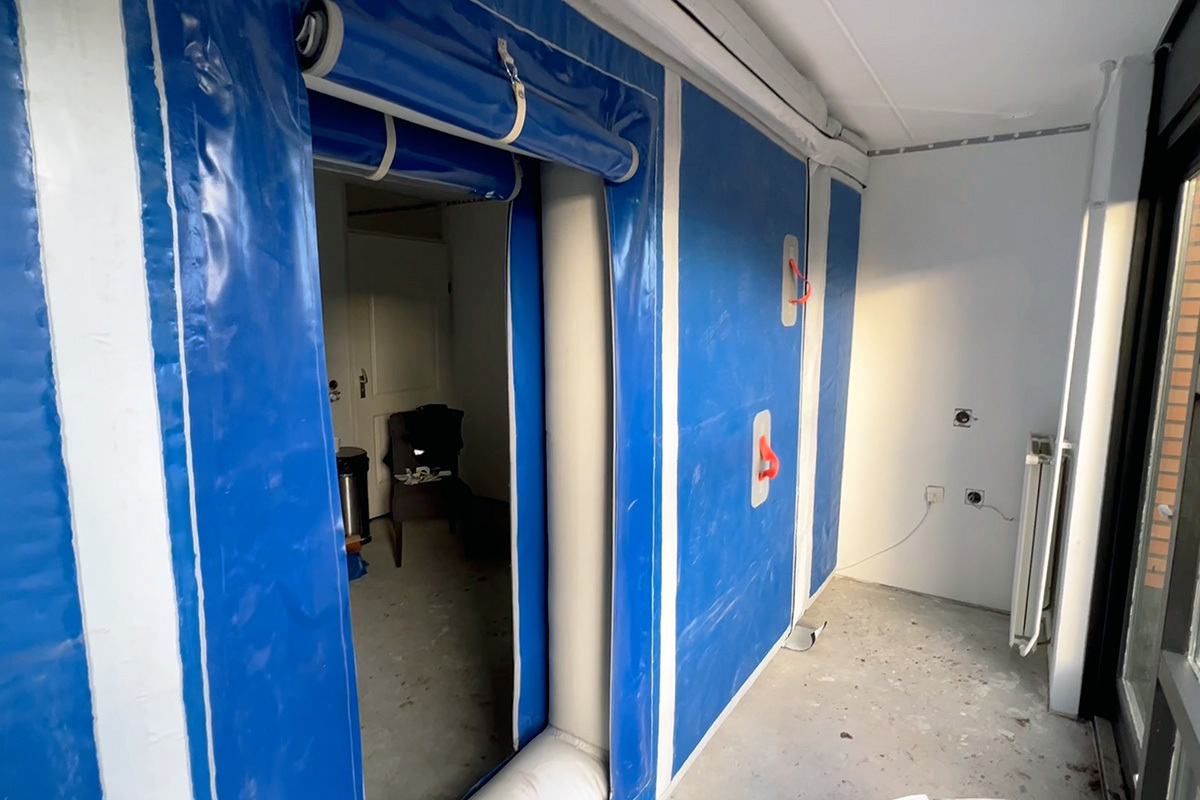

• Depending on the application, the fabric wall can be equipped with an integrated access opening, with freely selectable position and width.
• Thanks to its modular design, multiple elements can be connected to create larger or more complex enclosures.

Applications

Our inflatable fabric walls are perfect for:

• residential extensions
• renovations
• internal construction projects/ conversions
• temporary partition wall

By choosing our inflatable fabric wall, you are investing in a solution that improves efficiency, safety and convenience for both workers and occupants. Experience the convenience and efficiency of our inflatable dust wall.

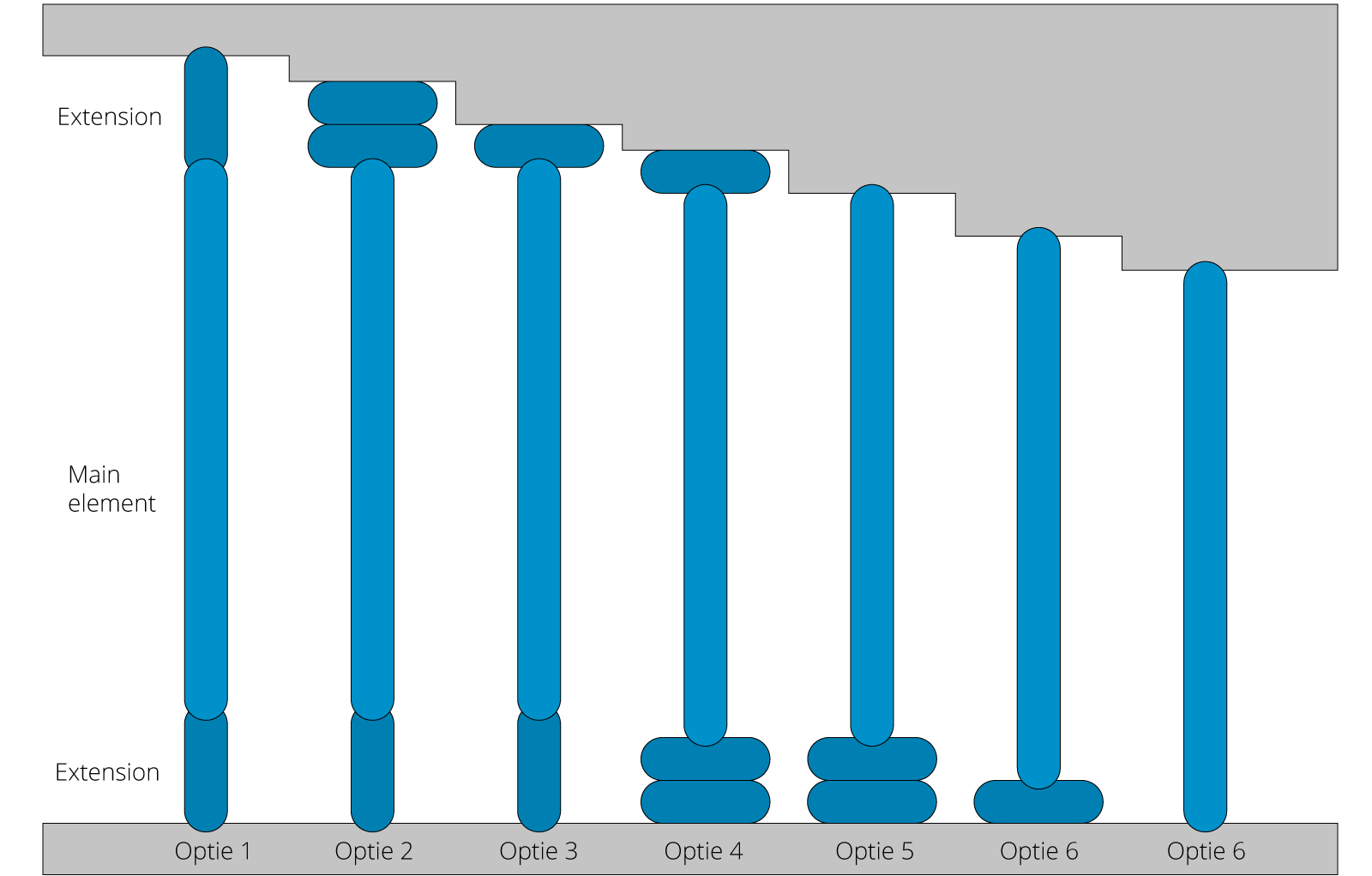

Modular Construction of inflatable wall

The fabric wall consists of a main element that can be extended with upper and lower extensions. Depending on the required height and interface, various configurations are possible.

Image: Modular Construction of inflatable wall

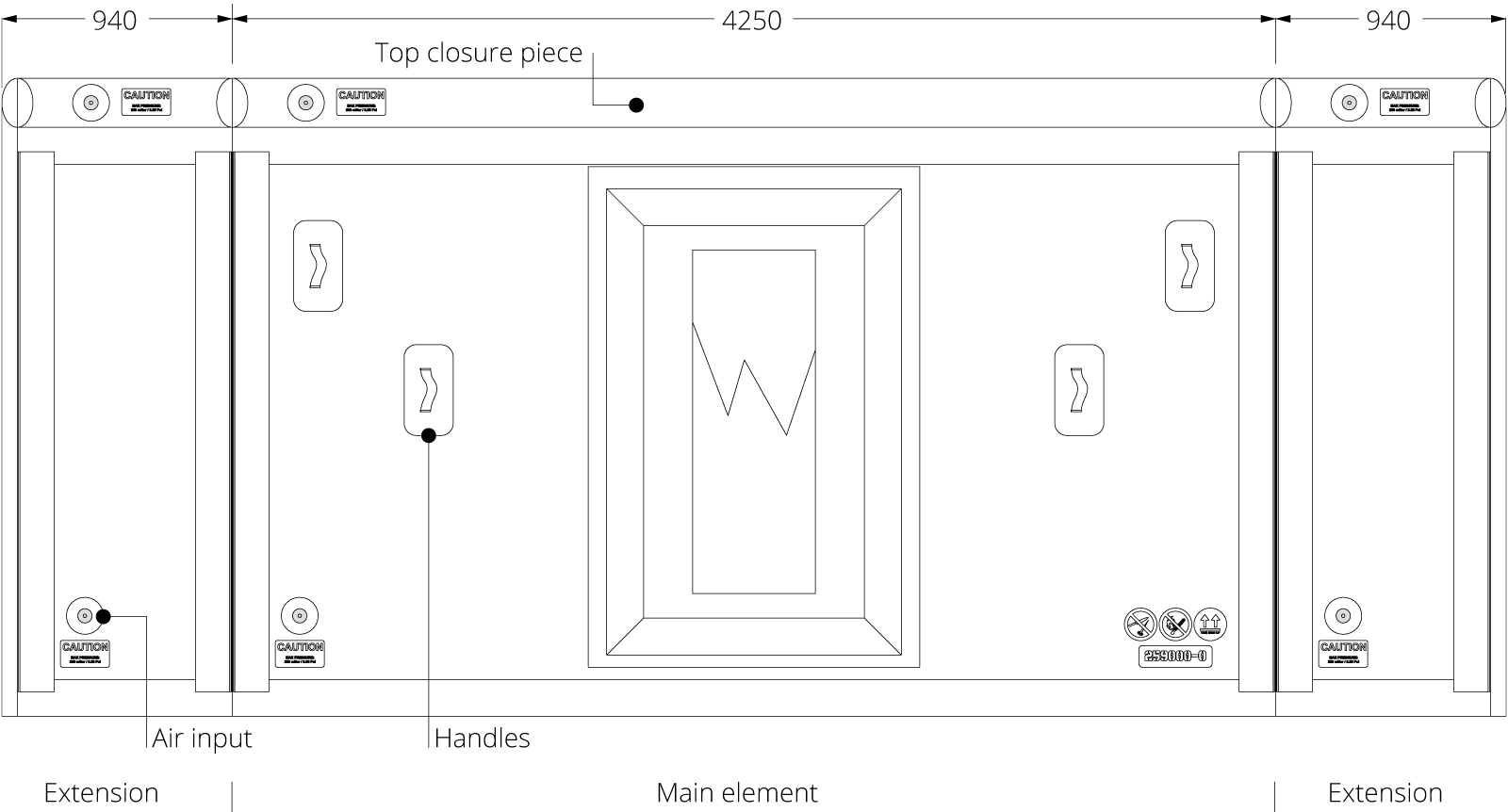

Engineering

Schematic engineering drawing with dimensions and positioning of the functional components of the modular fabric wall.

Image: Schematic engineering drawing
