Tensioned ceiling system Hart van Zuid
Contact form
+31 (0)316-250830

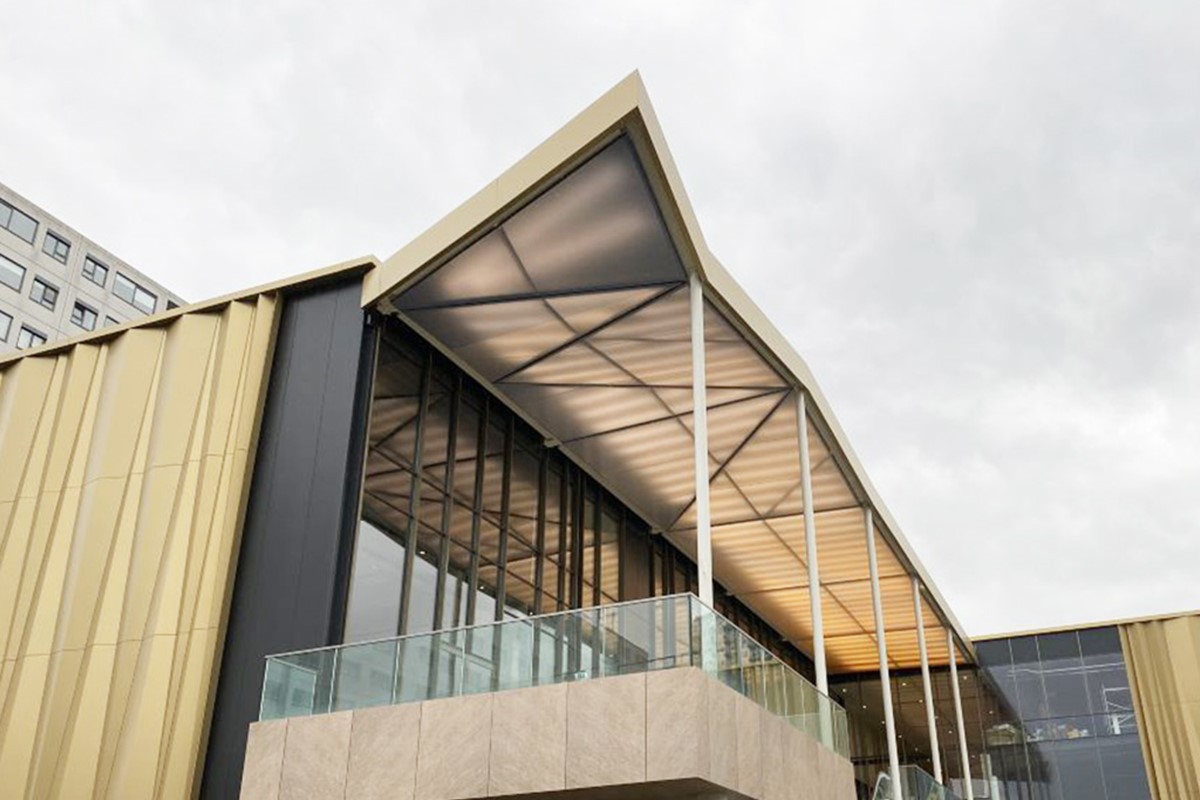

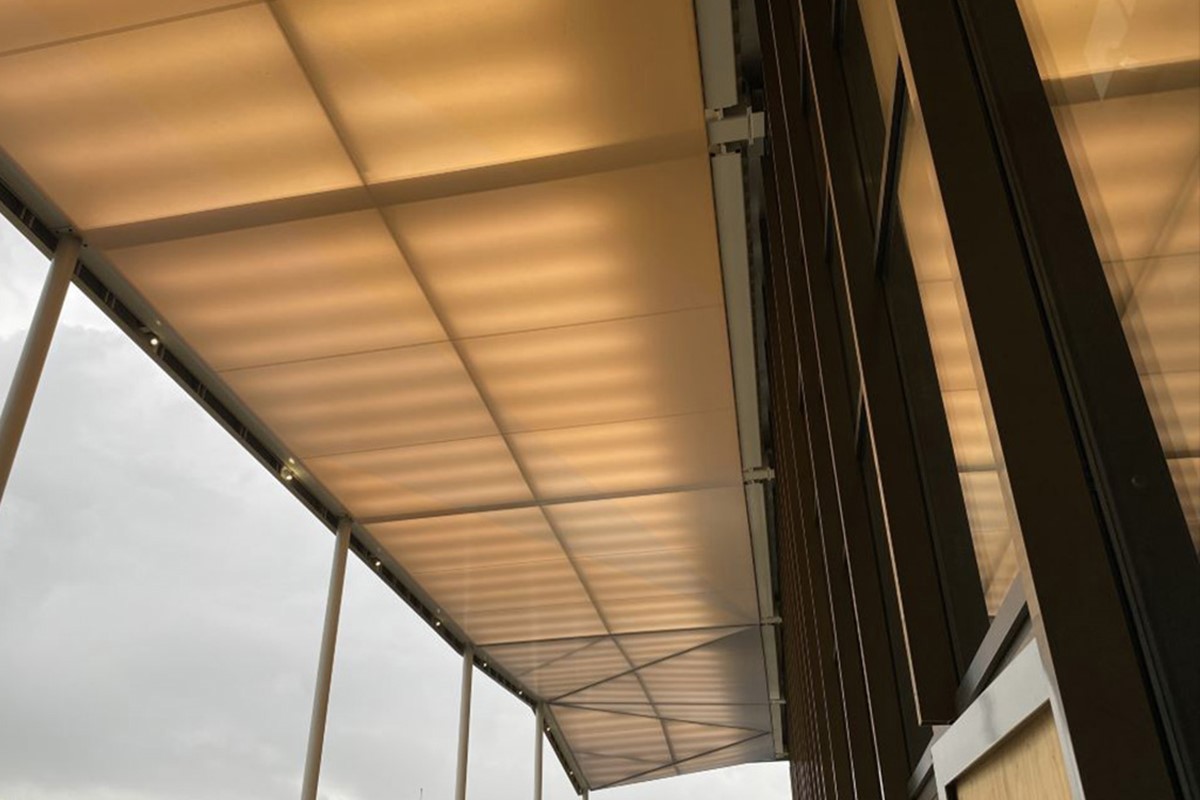

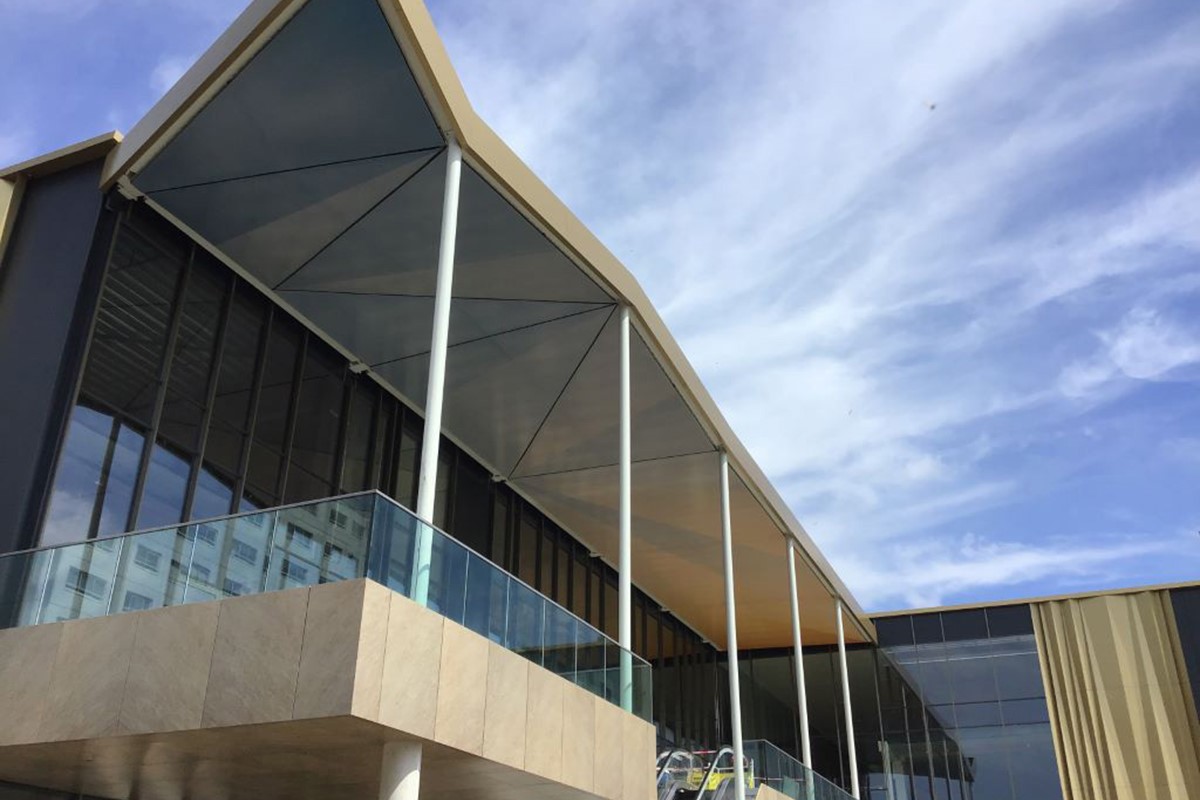

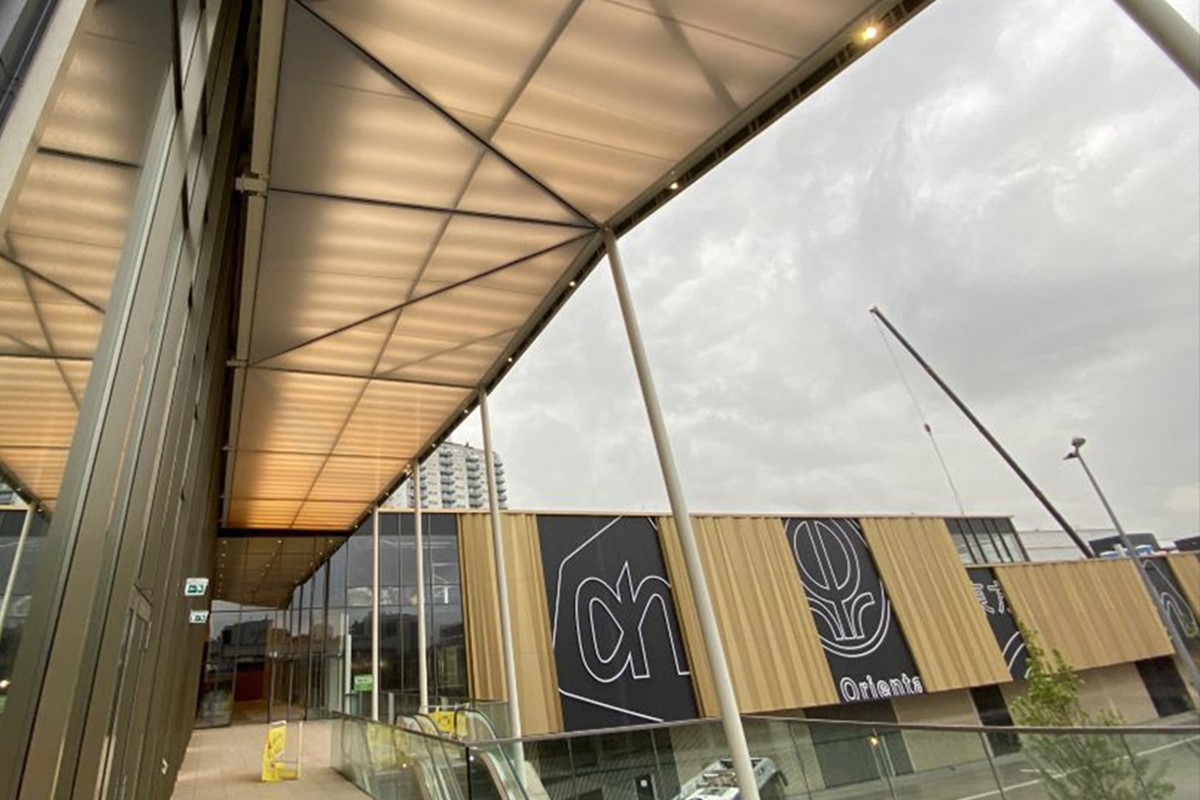

Buitink TechnologyBuitink Technology has delivered and assembled a stretch ceiling for the extension of Shopping centre zuidplein/ Hart van Zuid.
This stretch ceiling - with an area of approx. 275 m2 - is located on the underside of an external awning (overhang) and is therefore subject to wind forces (wind suction).
The full colour printed ceiling cloth is therefore fixed with a tensioning system, developed by Buitink Technology in house, which makes the ceiling cloth resistant to the occurring wind suction.

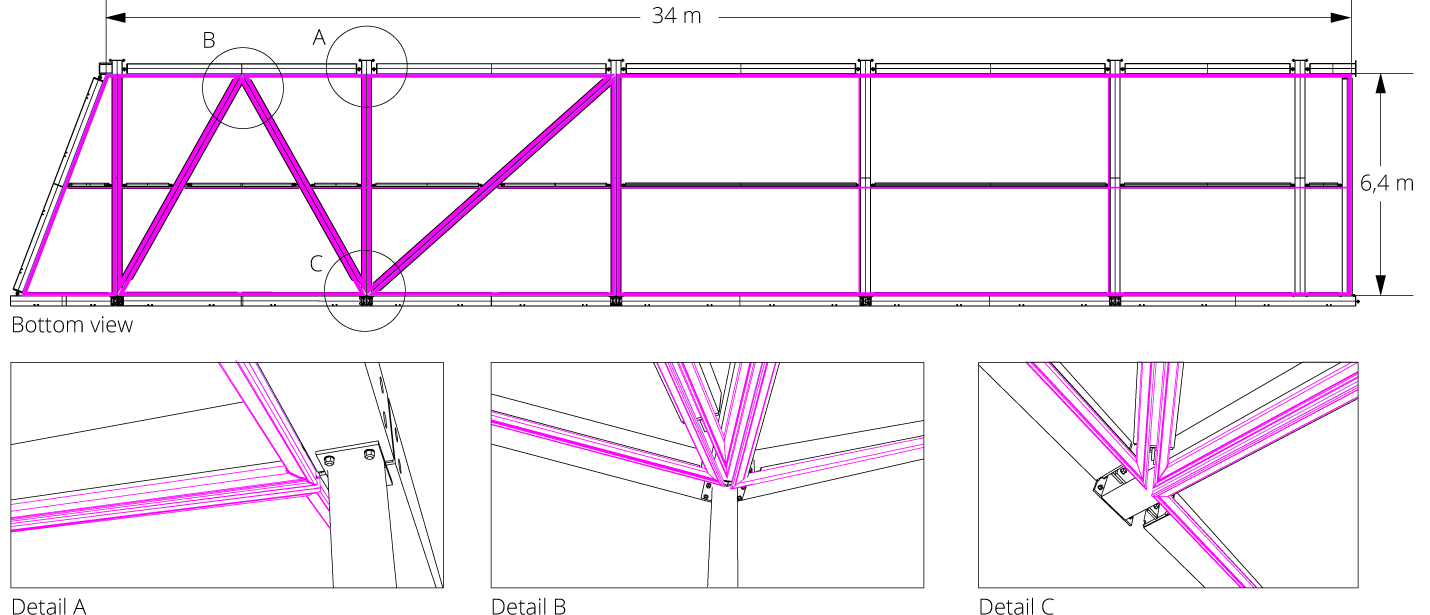

Engineering tension profiles
Visual of design
Project data
| Material of ceiling cloth: | Flame retardant coated polyester fabric with translucent full color print |
| Surface area: |
Approx. 275 m2 |
| Print: | Full color, with 10-year colorfastness guarantee |
| Printer: |
Printable |
| Architect: | TomDavid Architecten |
| Main contractor: | Heijmans Utiliteit BV |
| Tensioned ceiling system: | Buitink Technology |
| Completion: | 2022 |

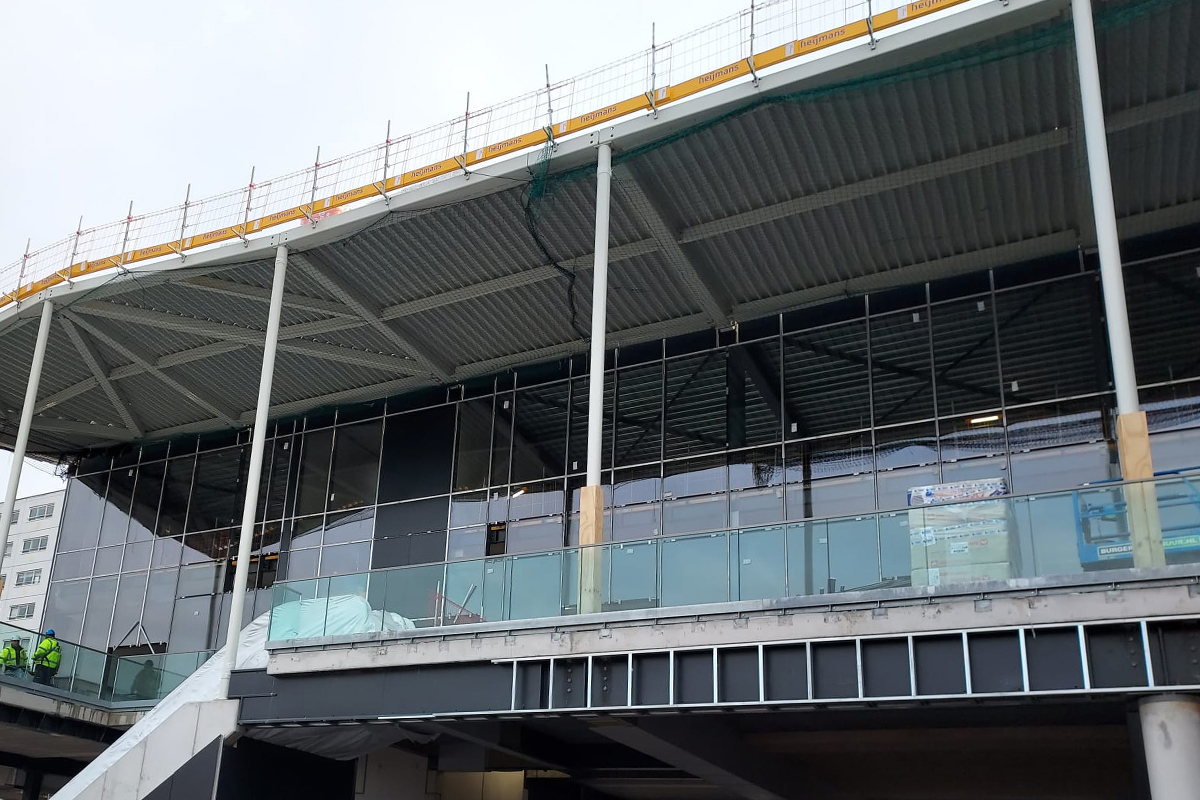

Mounting tensioned ceiling system
Location
Hart van Zuid shopping center | Near Zuidplein 64 | 3083 CW Rotterdam | Netherlands
