Westraven facade cladding
Contact form
+31 (0)316-250830

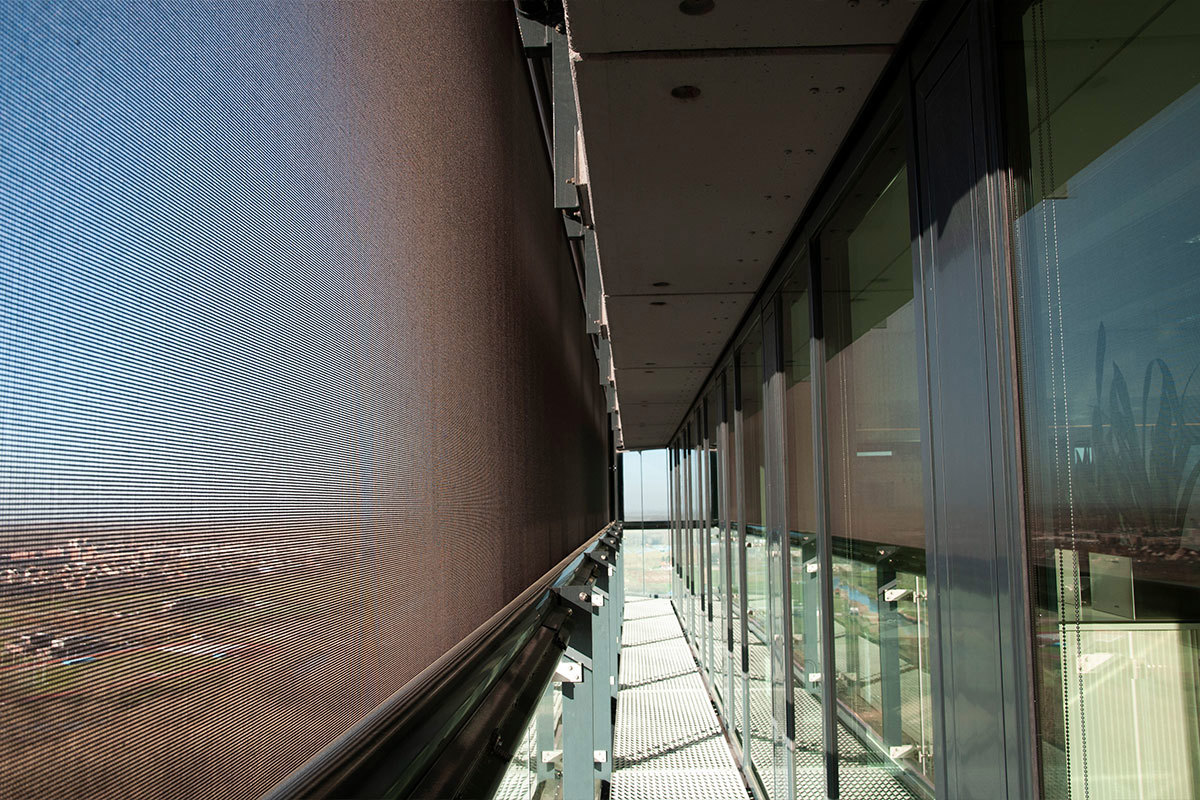

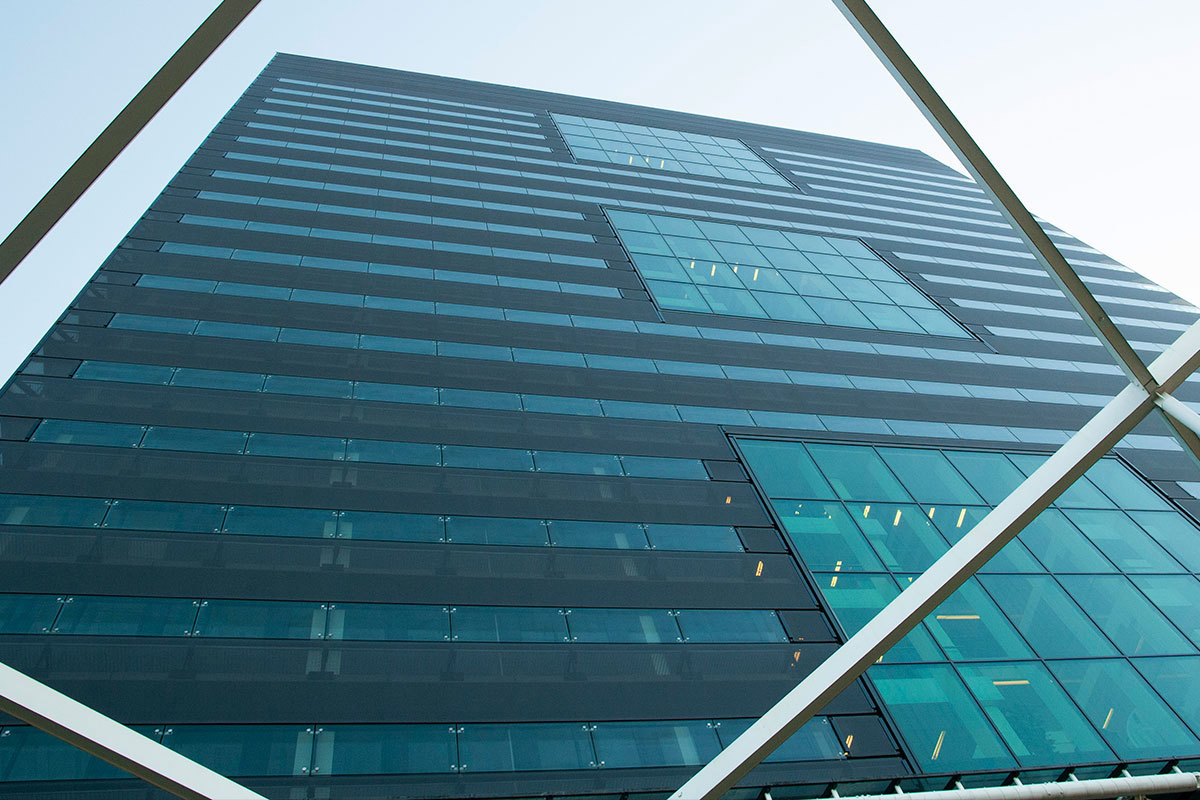

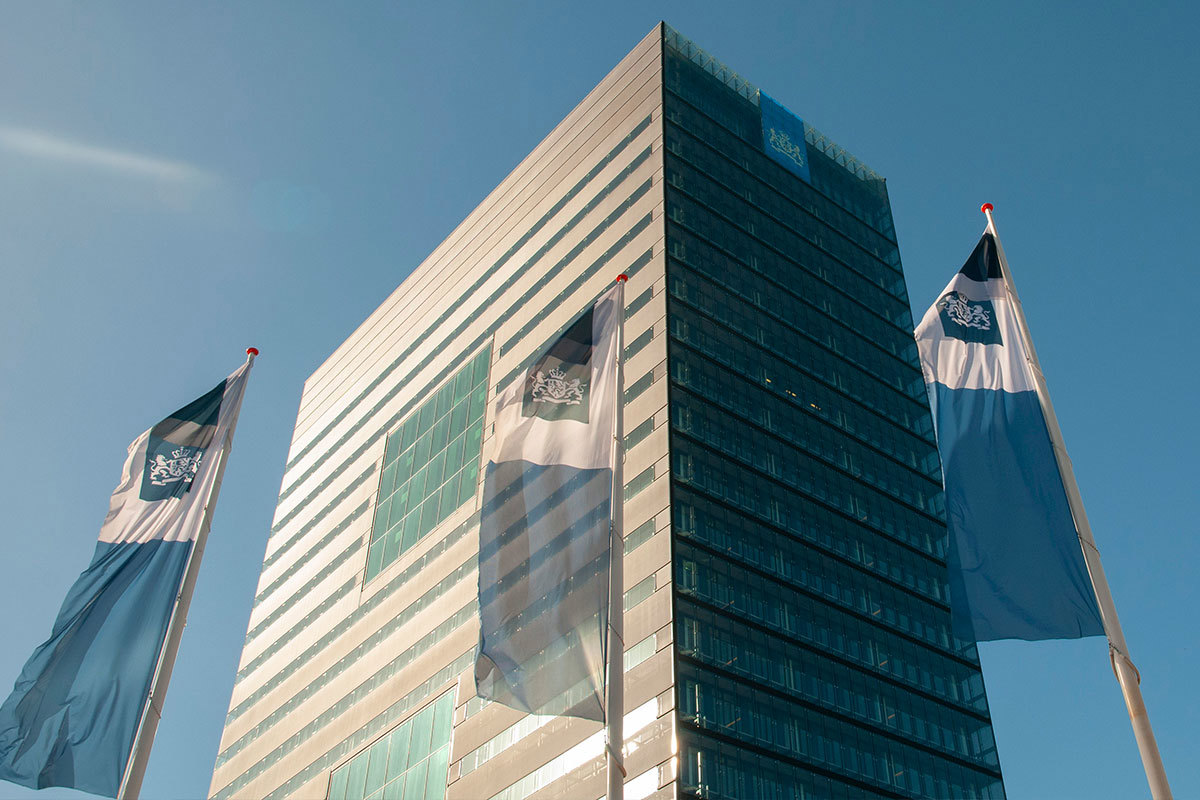

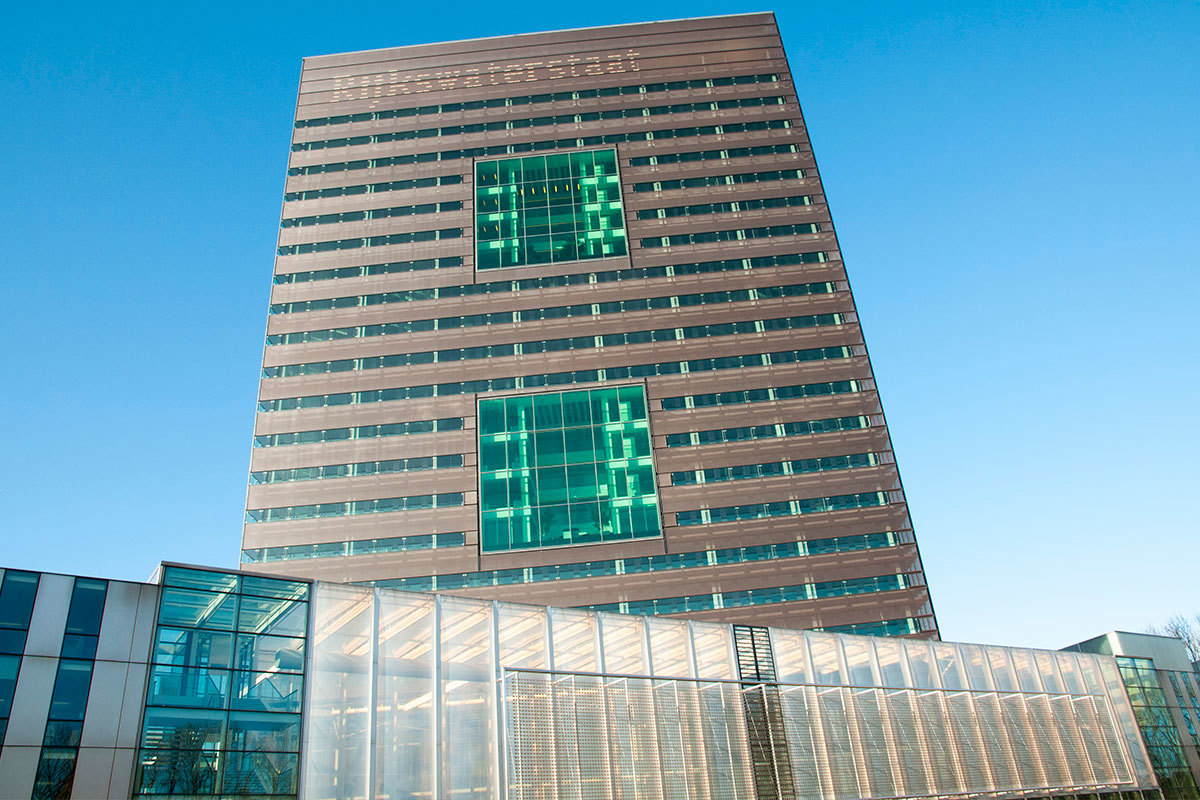

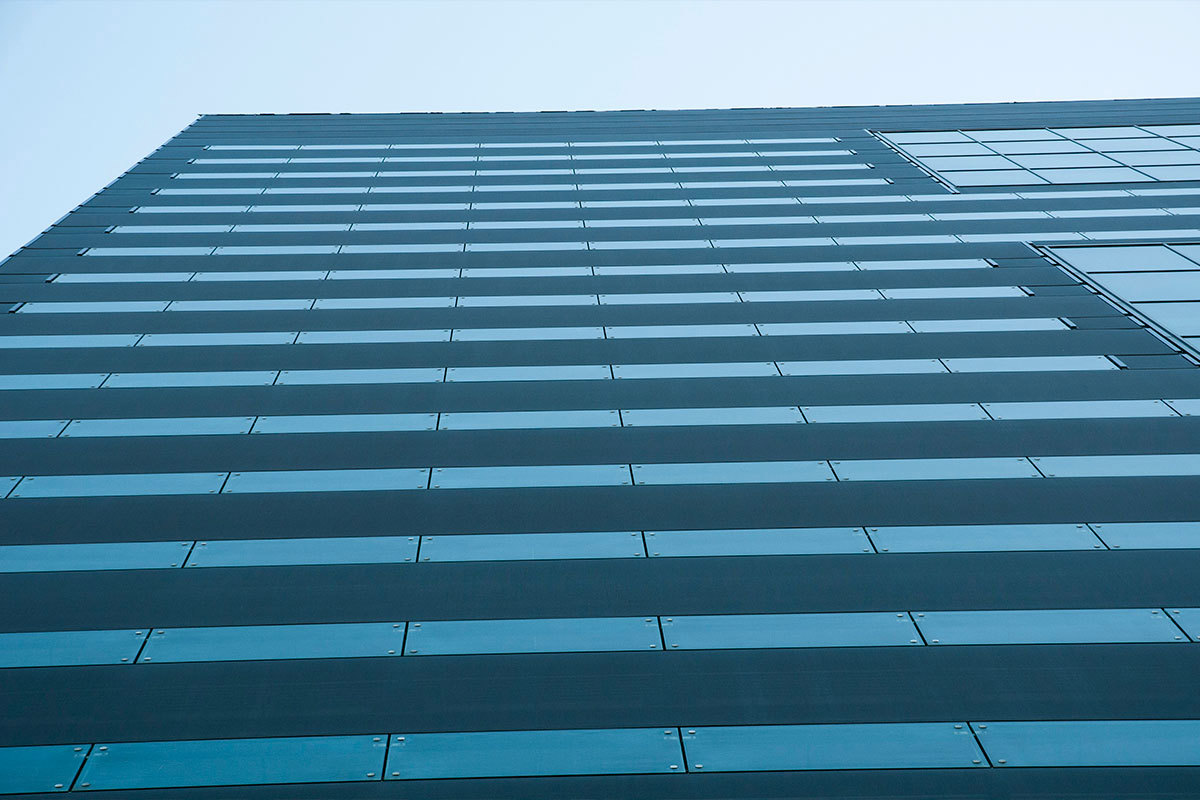

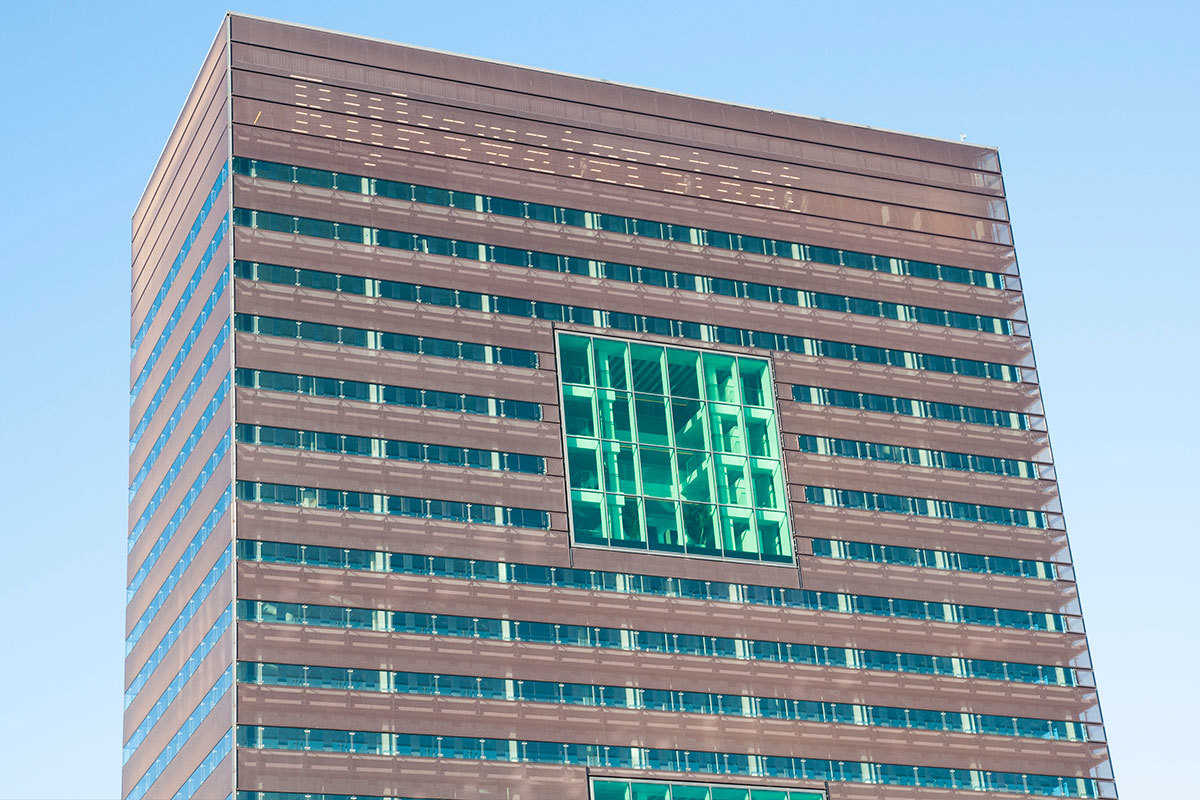

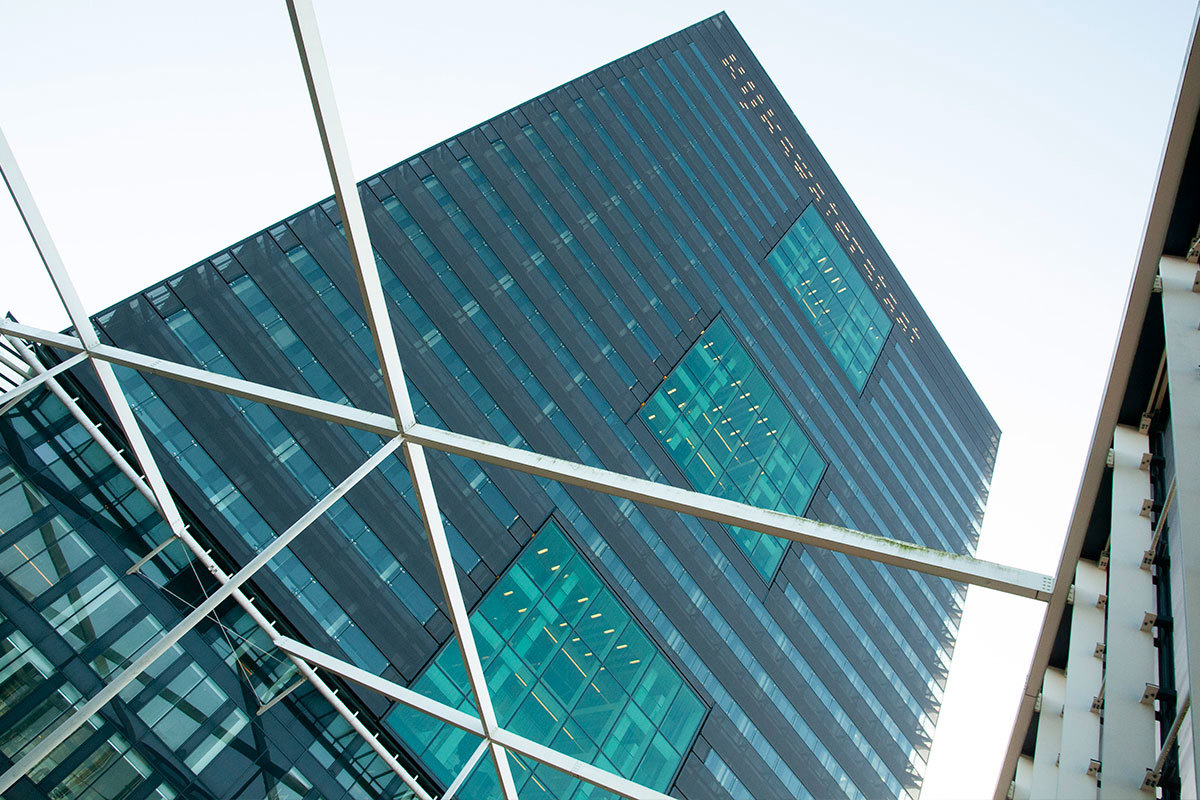

Buitink TechnologyBuitink Technology has replaced the textile facade cladding systems on the Westraven building in Utrecht.
The project includes a total of 179 facade cloths, the longest of which stretches no less than 53 meters (in a single length without welds).

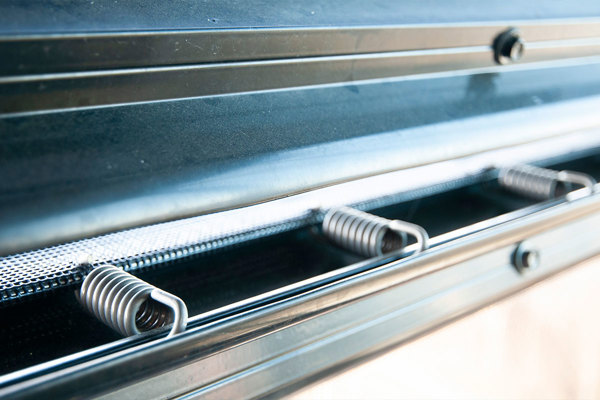

For the replacement of the facade cladding, Buitink Technology carried out the complete engineering, developed a new tensioning system and selected and applied a high quality mesh fabric so that the current facade will last for decades.
Project data
| Dimensions: |
179 facade cloths, total area +/- 10,000 m2 |
| Fabric: | Serge Ferrari Frontside view 381 | Specs > |
| Client: | Rijksvastgoedbedrijf |
| Main contractor: | BAM Construction & Engineering BV |
| Architect: | Cepezed |
| Consultant: | Peutz |
| Textile facade cladding system: | Buitink Technology |
| Completion: | 2020 |

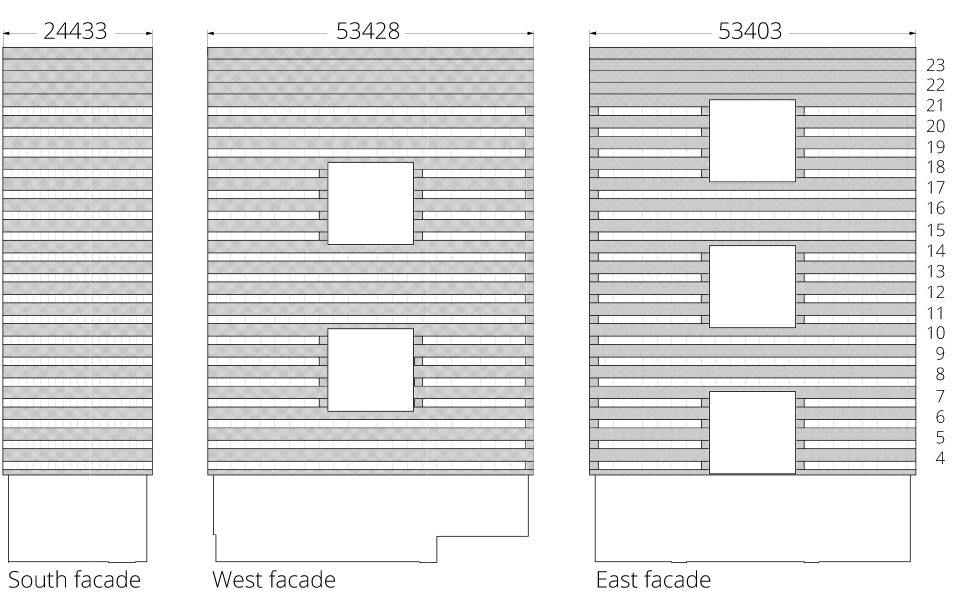

Illustration facade cladding

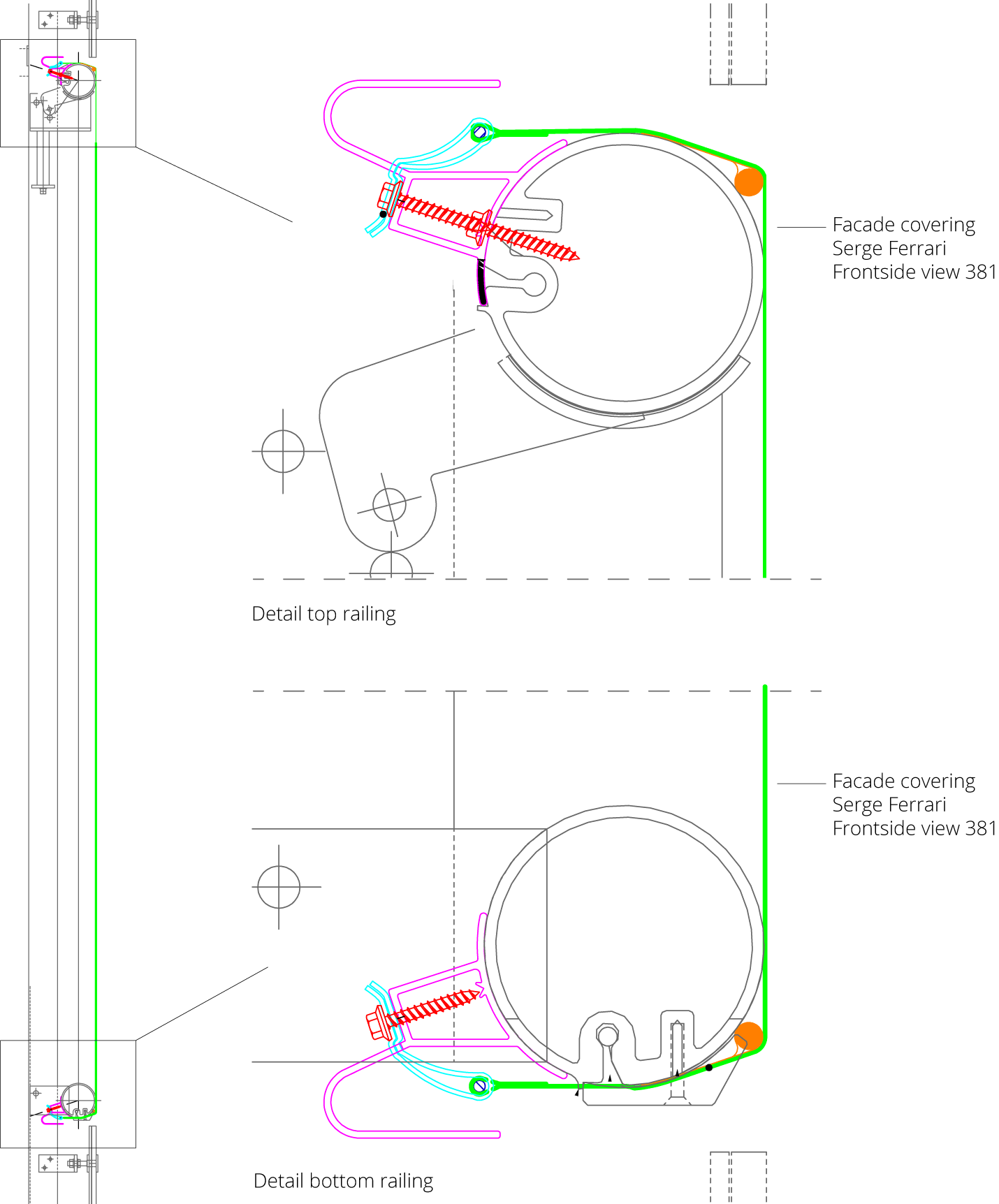

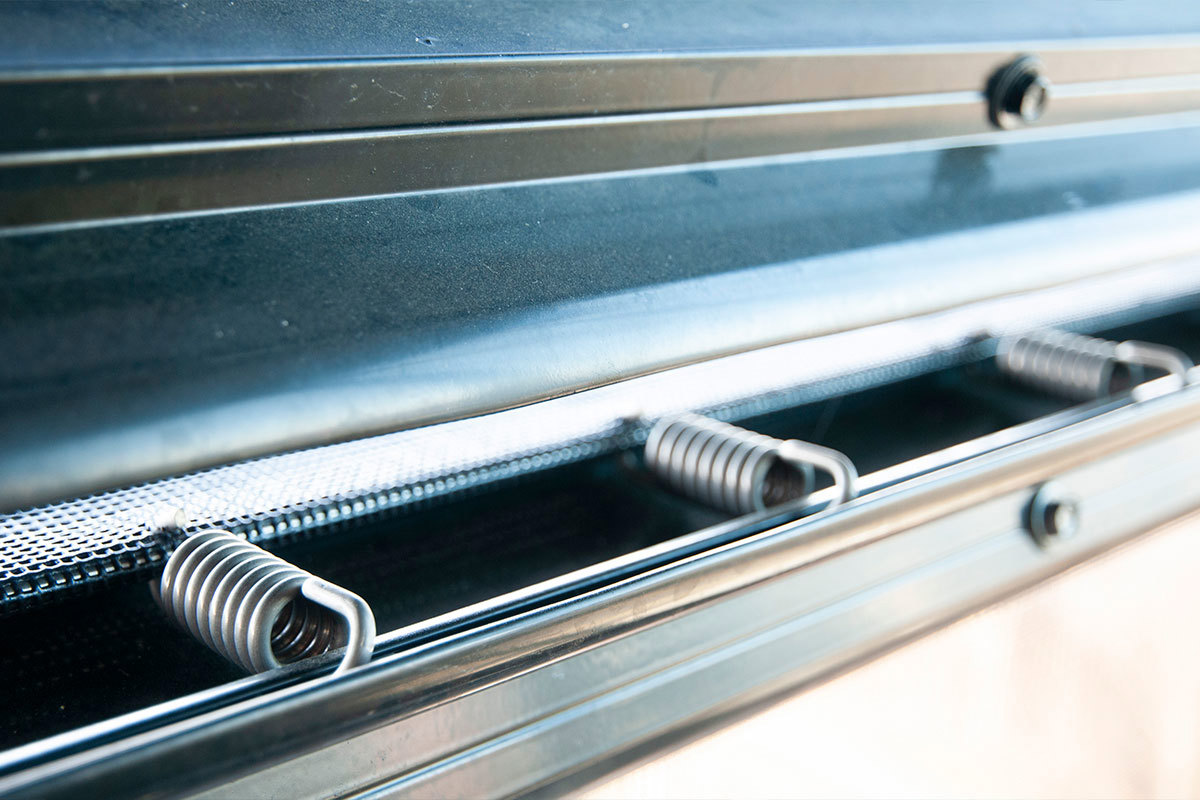

Detailing of facade cladding system
Location
Griffioenlaan, Utrecht
