ETFE membrane on wooden structure
Contact form
+31 (0)316-250830

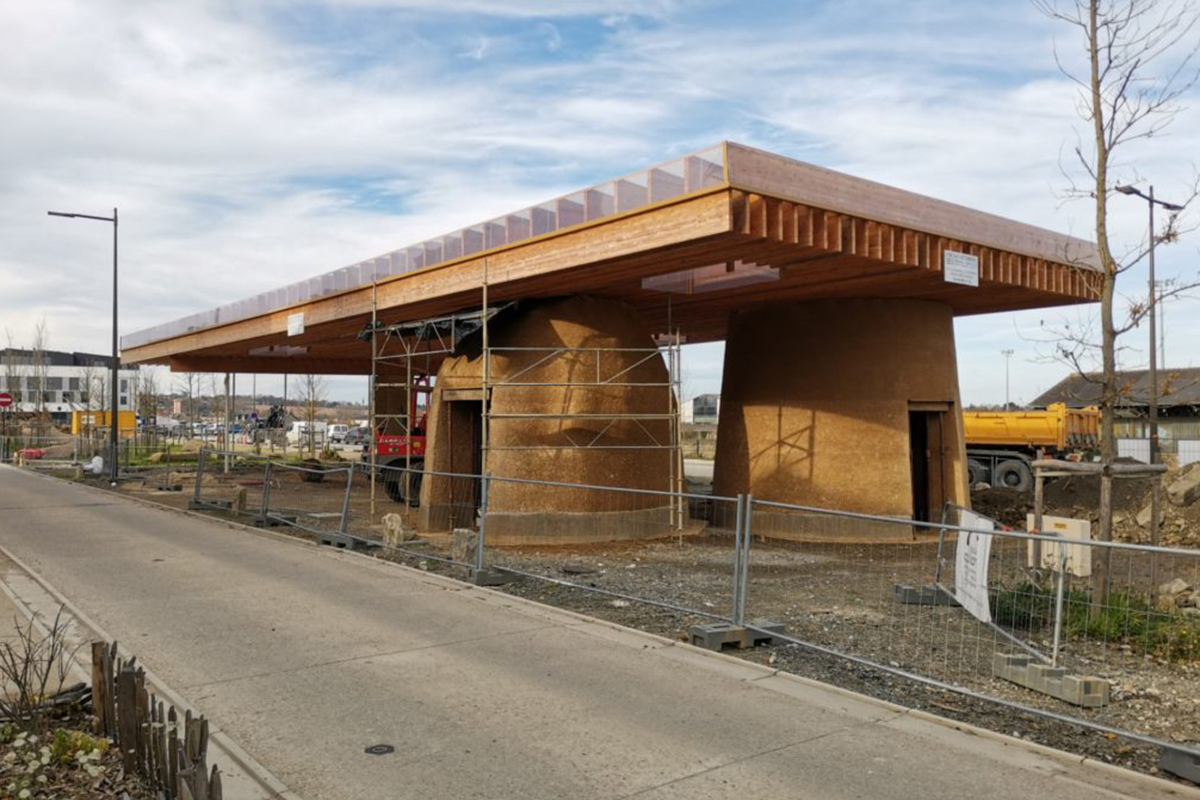

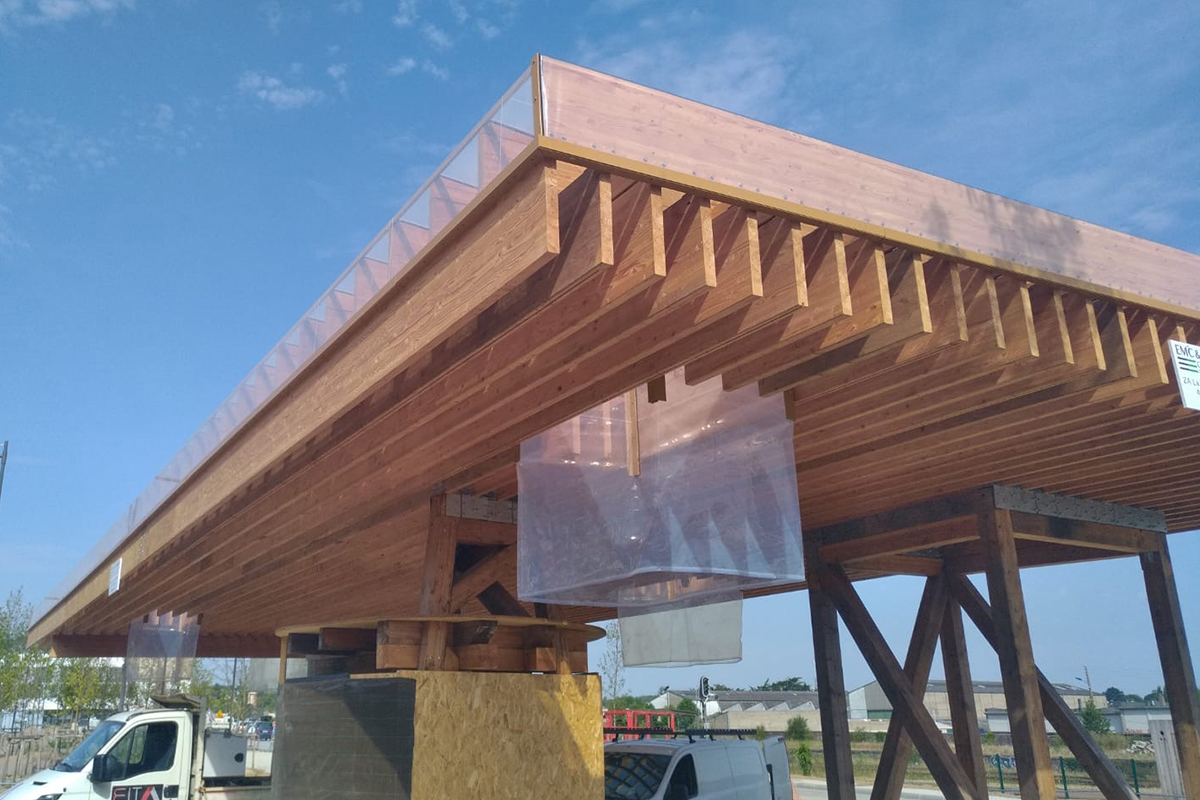

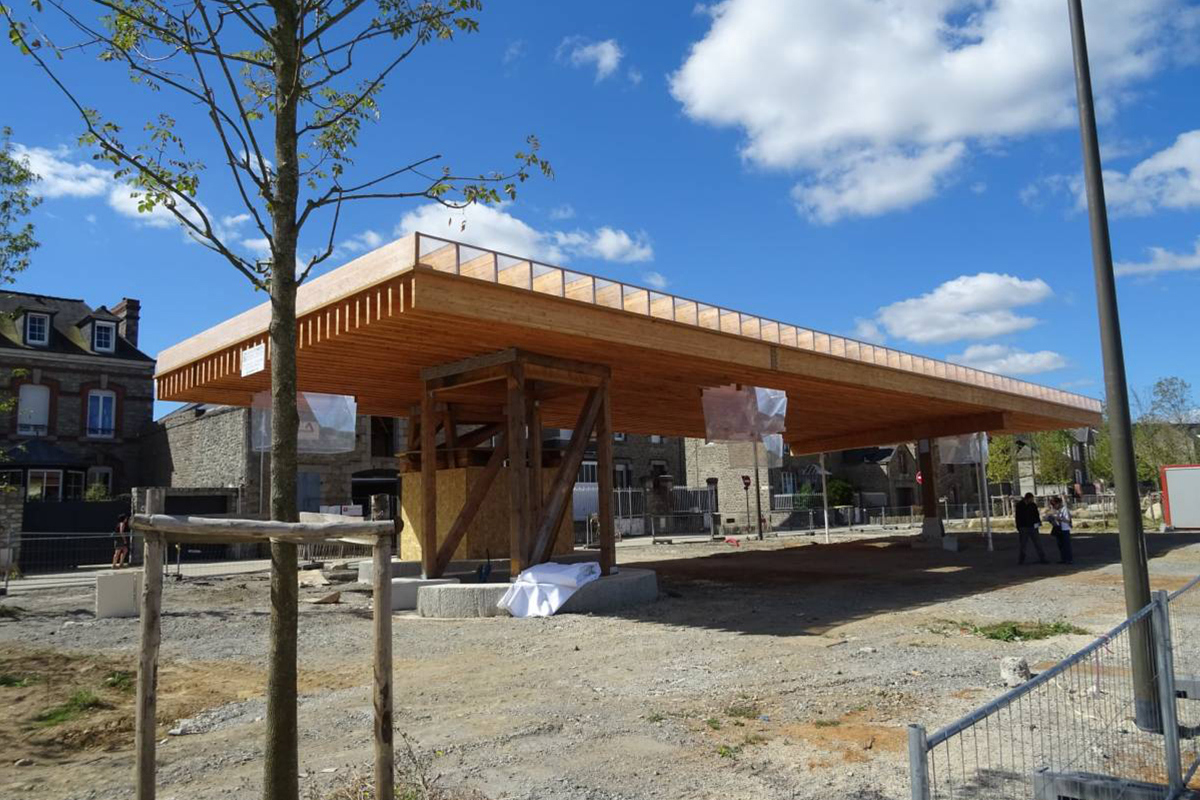

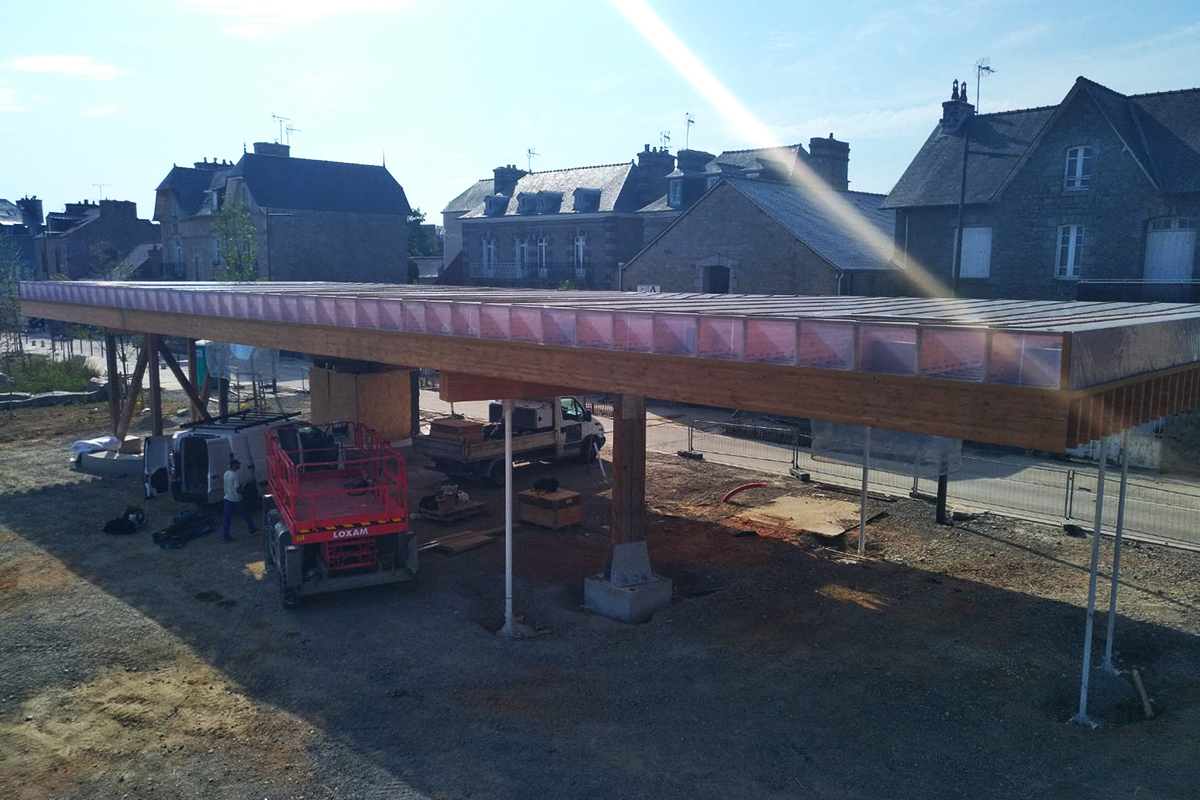

Buitink TechnologyBuitink Technology has carried out the engineering, delivery and assembly of the ETFE membrane with skylights for a covering of a public building next to the railway station in Dinan (La Halle des espaces publics Dinan Gare) for its French partner Highpoint Structures.
A single-layer of stretched ETFE film was chosen due to its self-cleaning properties, durability, high degree of transparency and extremely low weight.
The total surface area of the ETFE membranes extends to approximately 300 m2.
Project data
| Material: | ETFE foil, transparent |
| Surface area: |
Approx. 300 m2 |
| Client: | ville de DINAN |
| Architect: | F.au Architecture & Urbanisme |
| ETFE membranes: | Buitink Technology en Highpoint Structures |
| Year of installation: | 2020 |

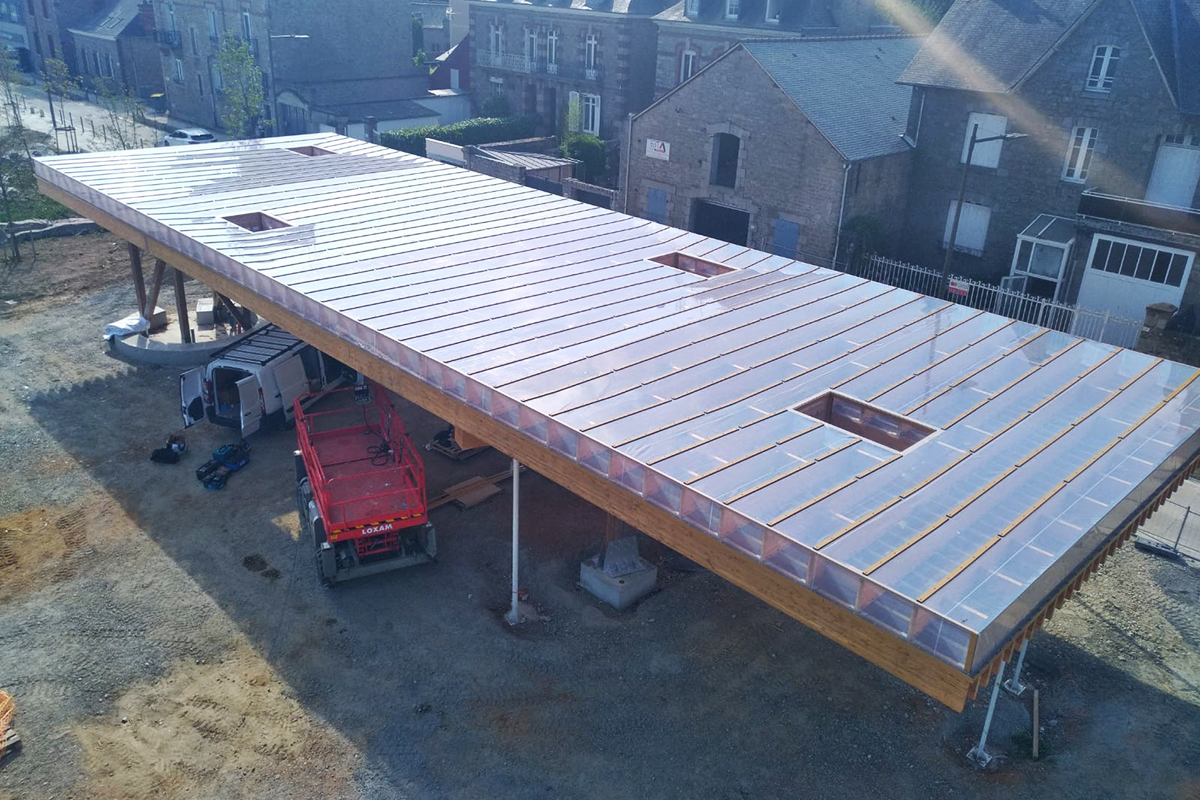

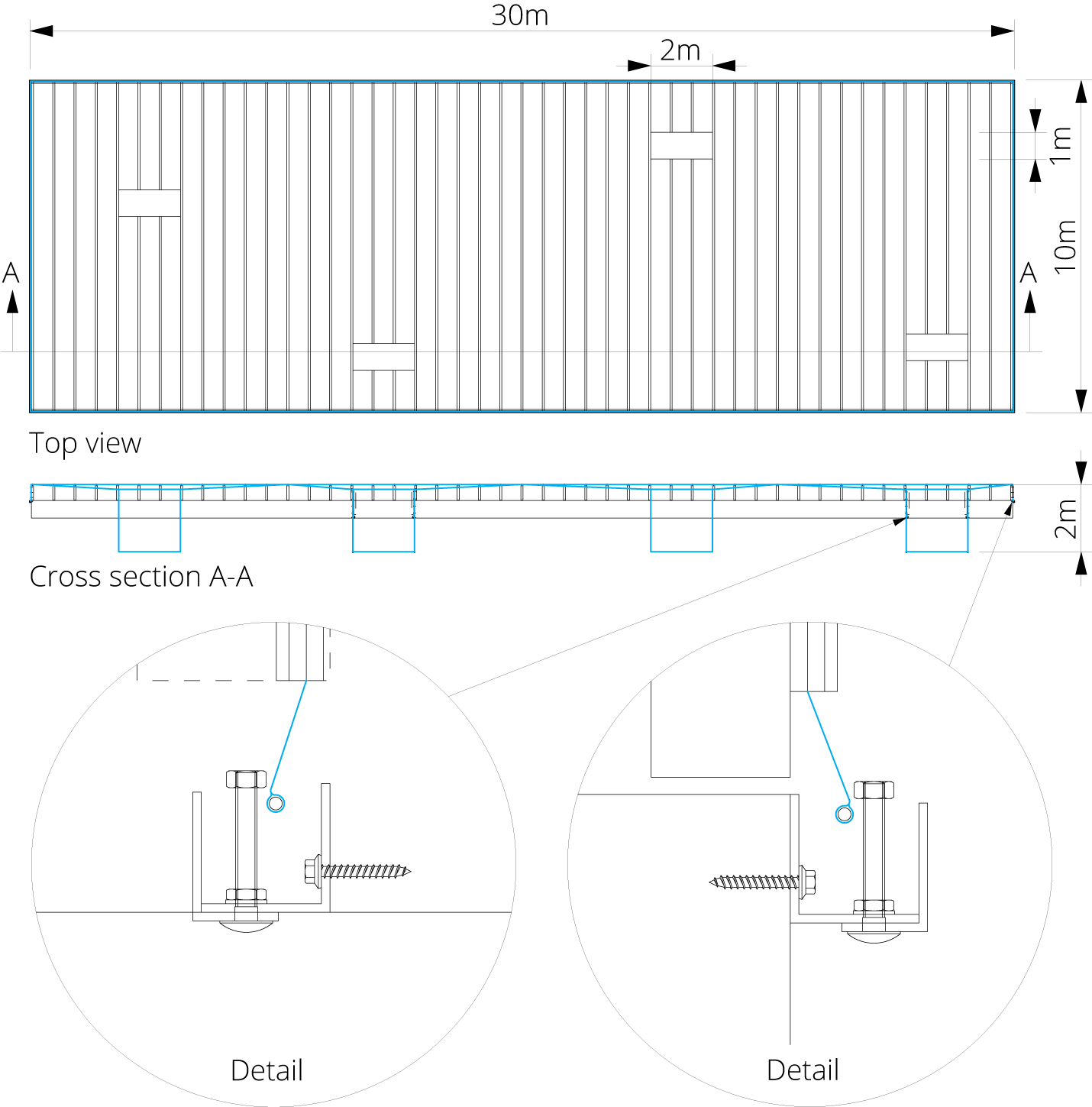

Engineering ETFE membrane with skylights
Location:
la Halle des espaces publics Dinan Gare
