The Buitink Flexible Water Dam is available in various designs and sizes. We can also provide tailor-made solutions.

The types in the table below are the standard sizes you can get away with in 95% of all cases.

Table specifications flexible water dam

BUITINK WATER BARRIER	Barrier height	Barrier length	Pollution holes	Standup sticks incl.	Width ground surface
Type	(cm)	(m)	(pcs)	(pcs)	(cm)
BFW-35-10-NO-NO	35	10	NO	NO	145
BFW-35-10-YES-YES	35	10	YES	YES	145
BFW-35-10-NO-YES	35	10	NO	YES	145
BFW-50-10-NO-NO	50	10	NO	NO	212
BFW-50-10-YES-YES	50	10	YES	YES	212
BFW-50-10-NO-YES	50	10	NO	YES	212
BFW-70-10-NO-NO	70	10	NO	NO	275
BFW-70-10-YES-YES	70	10	YES	YES	275
BFW-70-10-NO-YES	70	10	YES	YES	275

PACKAGE
PACKAGE	Lenght	Width	Height	Weight
Type	(cm)	(cm)	(cm)	(kg)
BFW-35-10-NO-NO	106	42	33	36
BFW-35-10-YES-YES	106	42	33	36
BFW-35-10-NO-YES	106	42	33	36
BFW-50-10-NO-NO	90	50	43	61
BFW-50-10-YES-YES	90	50	43	62
BFW-50-10-NO-YES	90	50	43	61
BFW-70-10-NO-NO	120	50	35	58
BFW-70-10-YES-YES	120	50	35	58
BFW-70-10-NO-YES	120	50	35	58

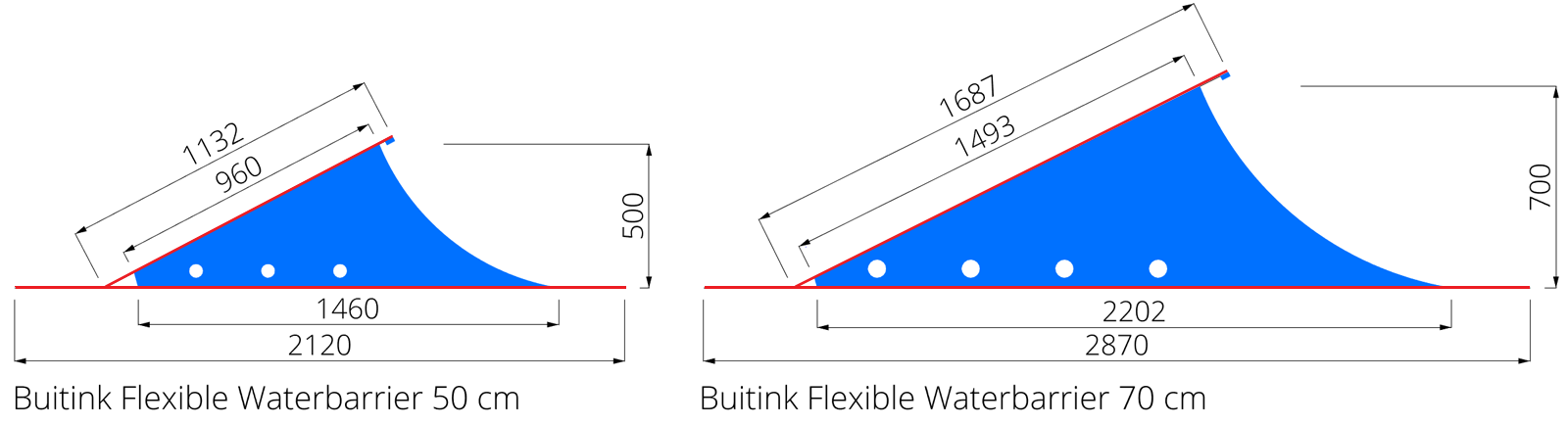

Schematic representation of flexible water dam

Afbeelding 1: Schematic representation of flexible water dam
