Buoyancy and stability for submarine measuring device

Buitink Technology was commissioned to design an inflatable buoyancy system for an acoustic polygon for use on the seabed.

The device is used to carry out acoustic and hydrophonic measurements, and it weighs around 3.5 tonnes.

Acoustic meetapparatuur voor zee

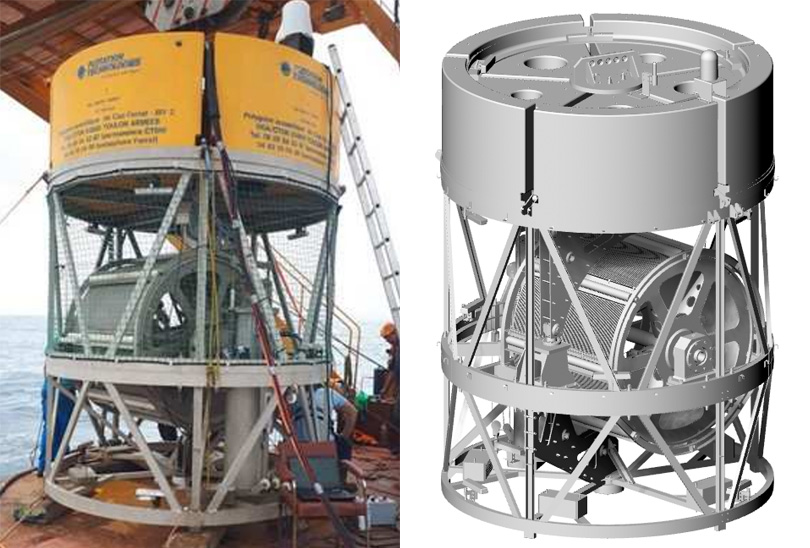

The measuring instrument (3.5 tonnes)

Purpose

The purpose of the inflatable buoyancy system is to:

  1. Give the instrument flexible buoyancy allowing it to be raised from the seabed every two or three weeks for maintenance work.
  2. The flotation bags must also keep the polygon stable when it is at the surface. What happens when a technician walks on the system to carry out maintenance? At what angle or with what movement would the instrument tip over in the water?

Solution

To give the instrument sufficient buoyancy and stability, we custom designed five parachute-shaped flotation bags. These provide ample buoyancy, even when the measuring instrument is slightly tilted, and ensure it remains stable in the water so it cannot be capsized by the waves.

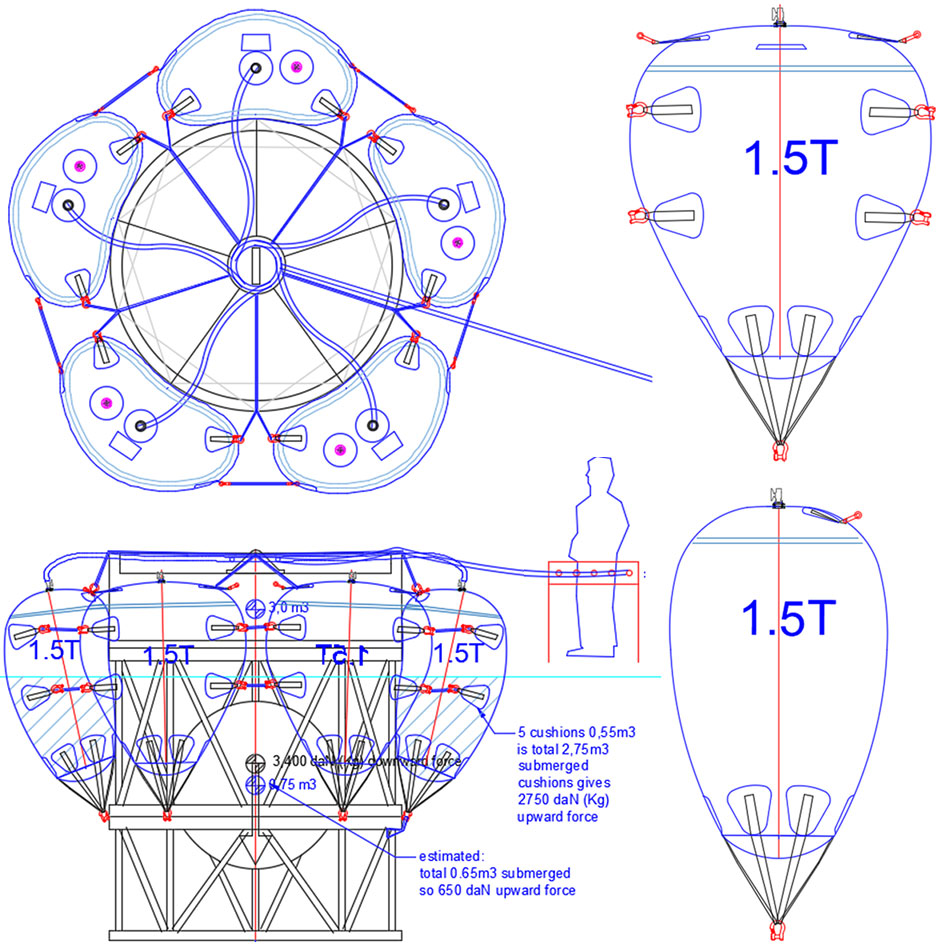

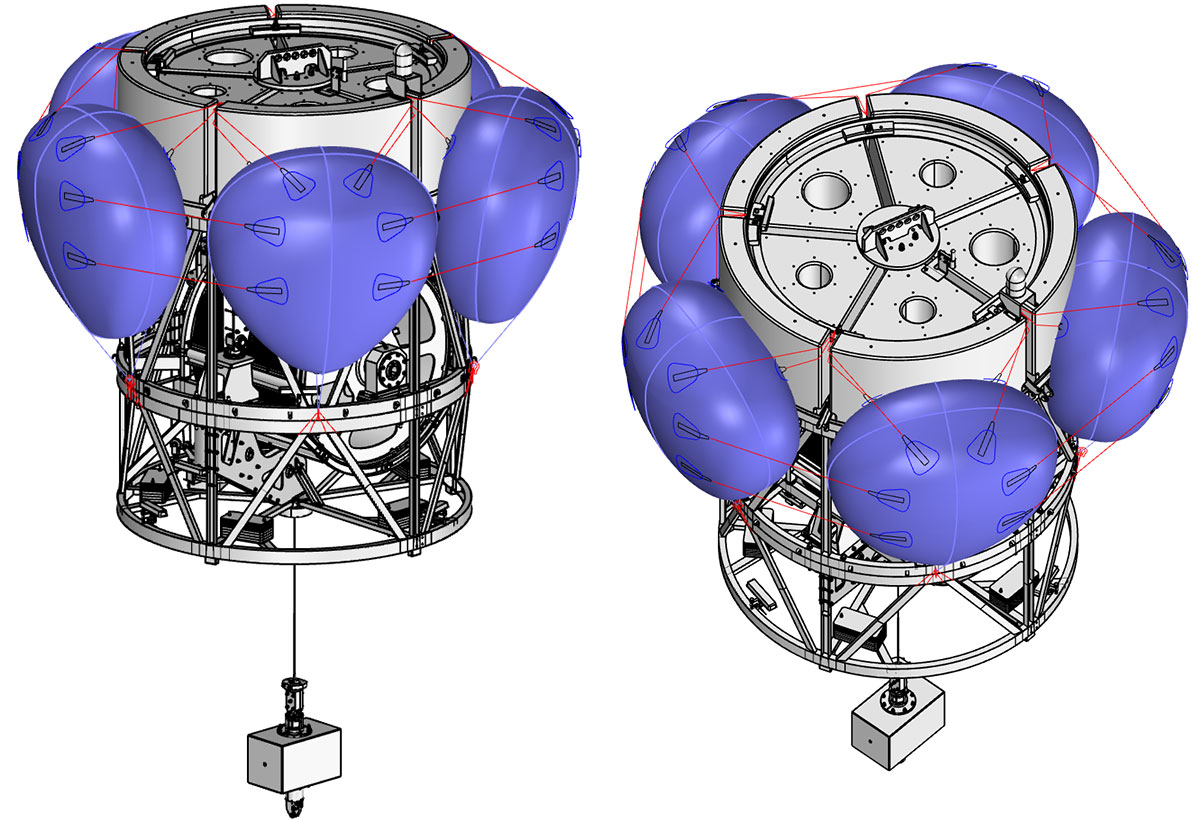

Uitwerking drijfsysteem

The inflatable parachute-shaped floats are fitted with attachment points are attached securely to the instrument. The flotation bags are reinforced where they come into contact with the structure.

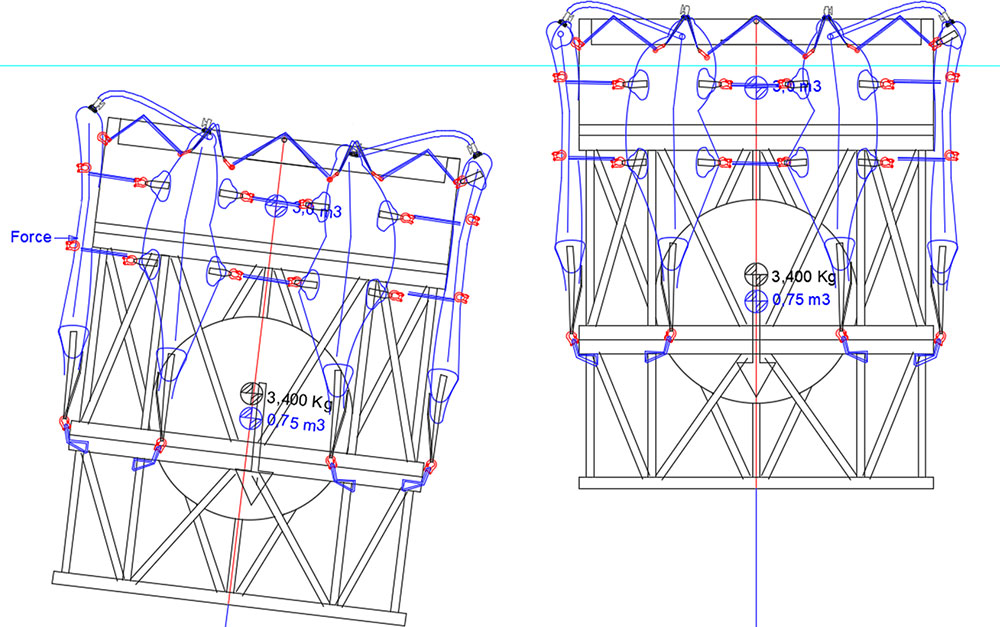

When deflated

When the flotation bags are deflated the acoustic polygon can be lowered using a pulley and cable.

Meetinstrument met kussens

Side view of the flotation bags when deflated: the instrument sinks to the seabed

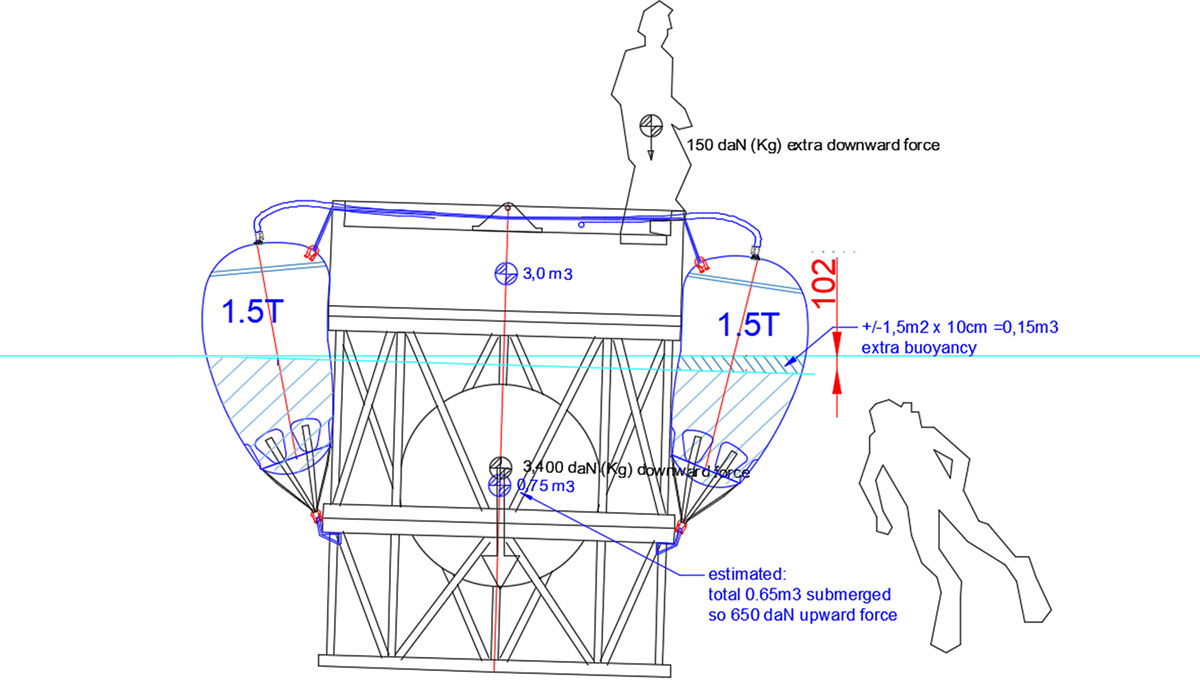

Stability during maintenance work

When the measuring instrument floats on Buitink Technology’s five flotation bags it is held in a stable condition. The weight of a maintenance engineer walking on top of the floating object tilts it only slightly.

Stabiliteit door drijfkussens

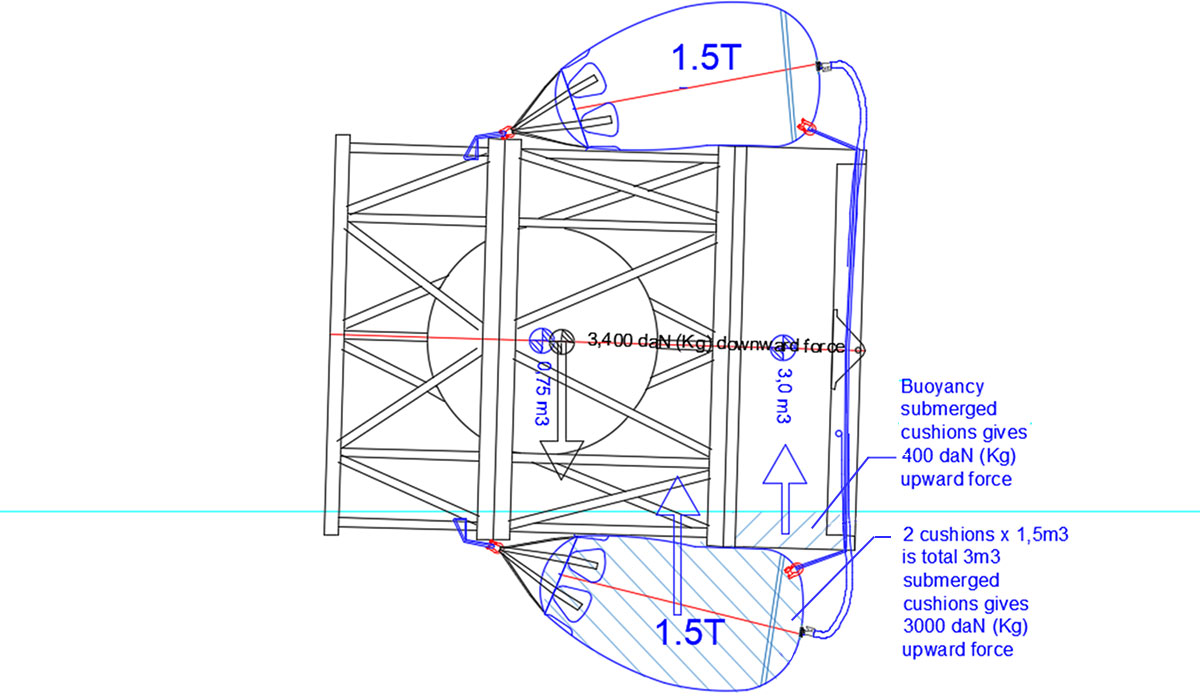

Balance and centre of gravity

Even when the polygon measuring instrument is tilted to 90 degrees, there is still enough upward force to right it.

Evenwicht en zwaartepunt

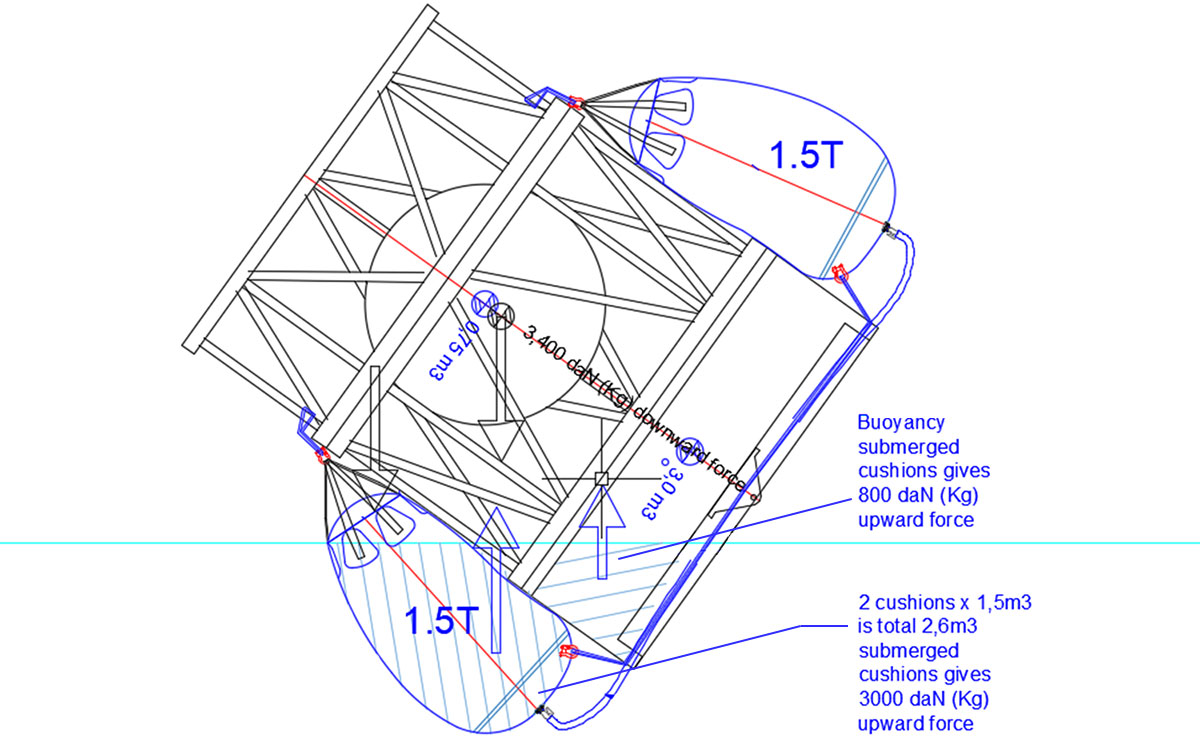

Tipping point

Only at an angle greater than approximately 130 degrees, is the tipping point reached, causing the polygon measuring instrument to flip over completely and not right itself.

Kantelpunt drijfsysteem

3D rendering

3D rendering

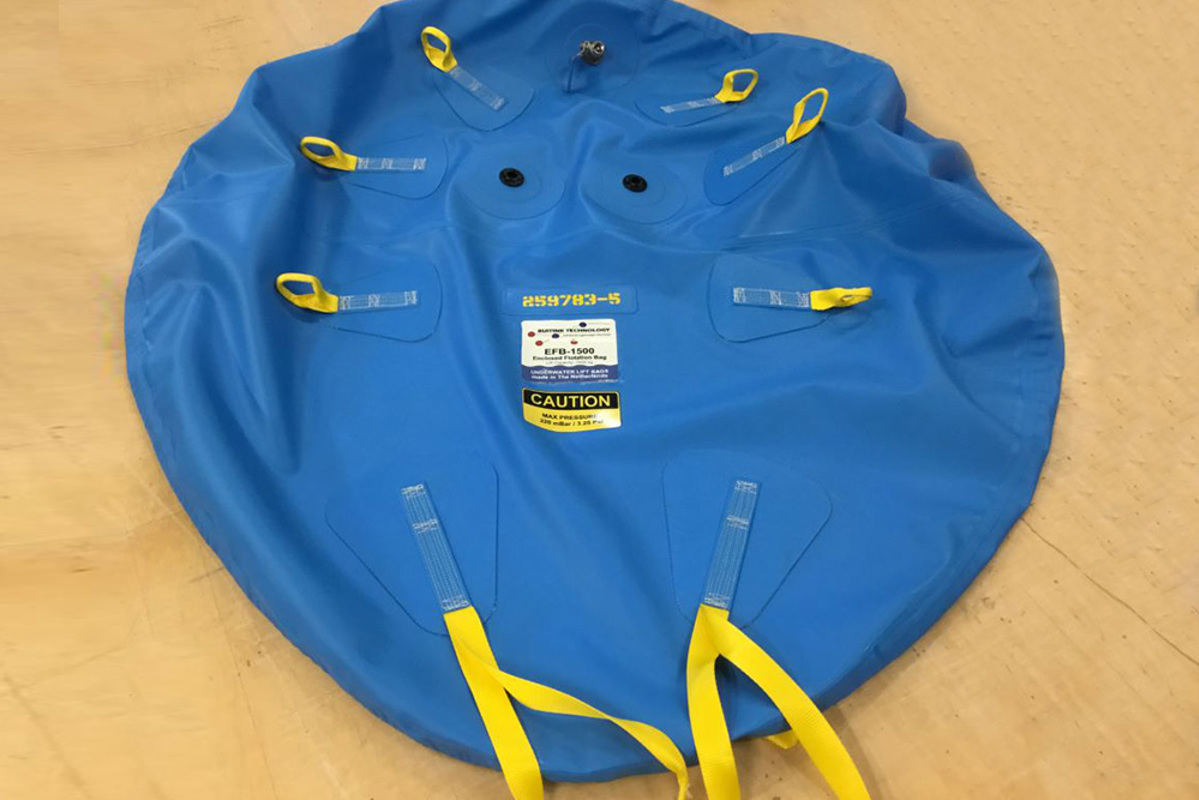

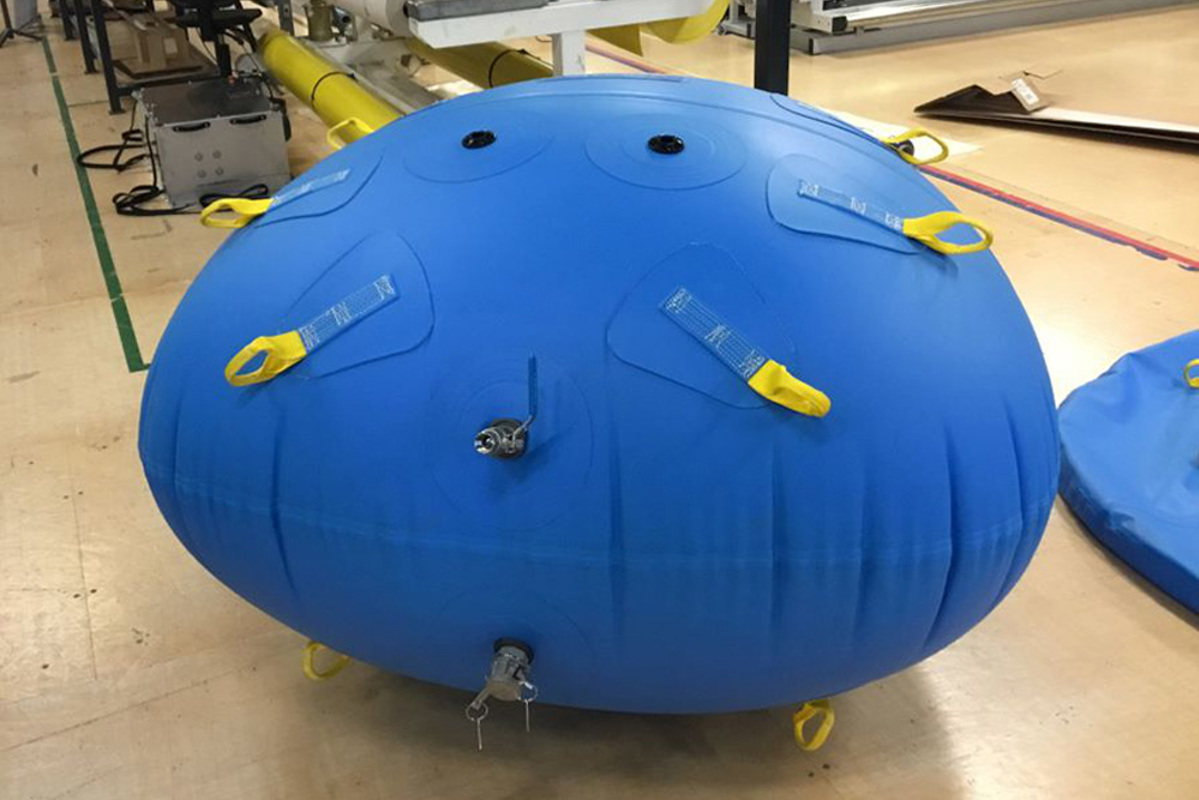

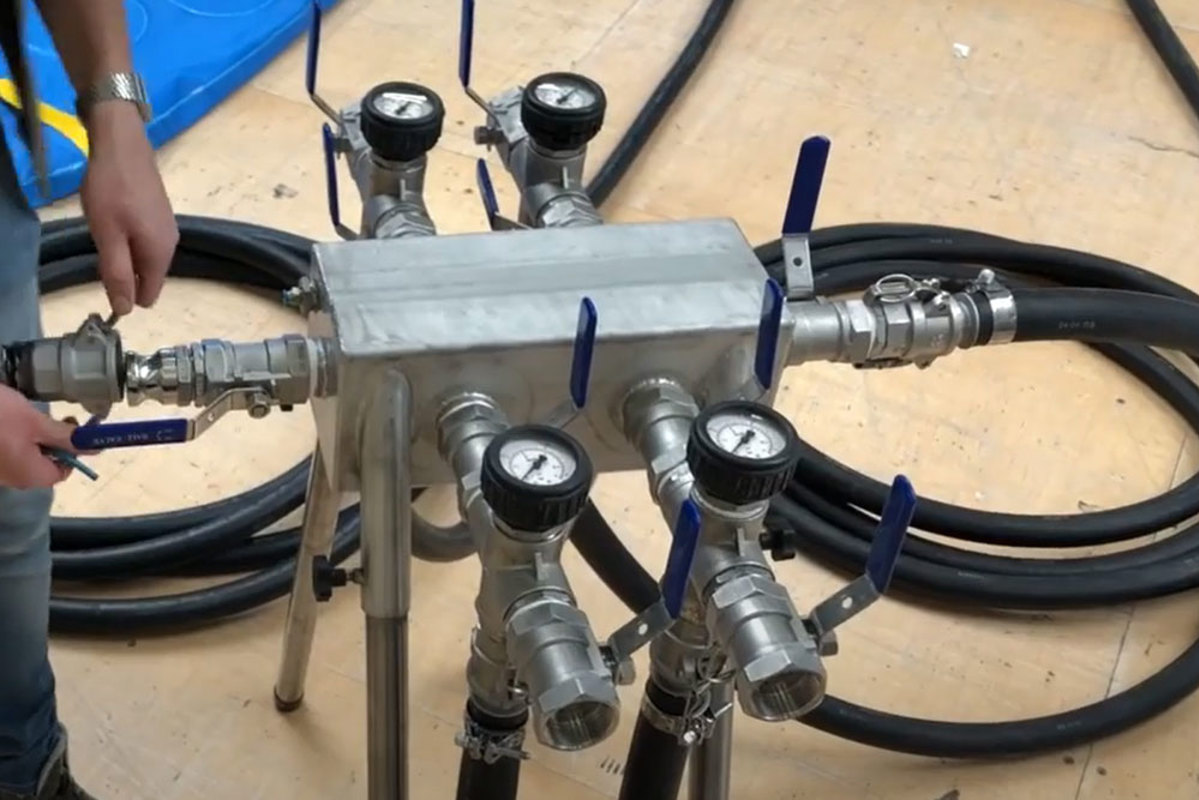

Realisation

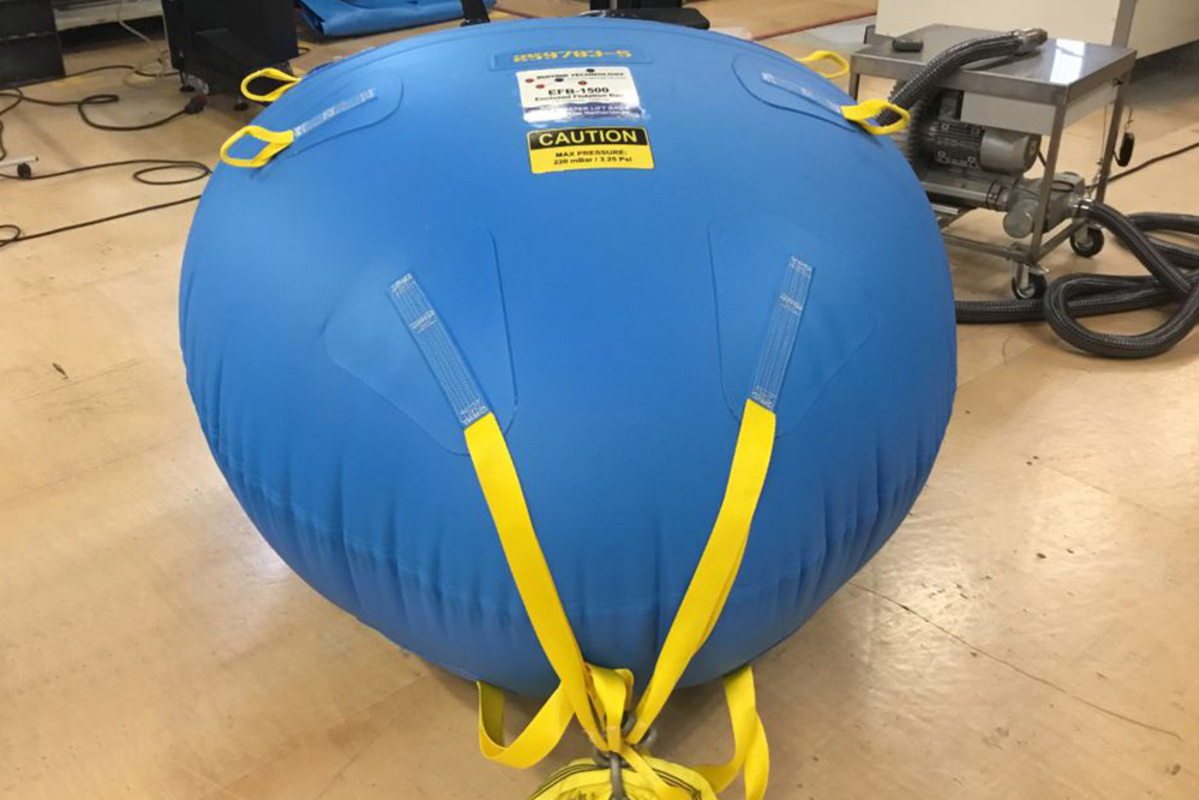

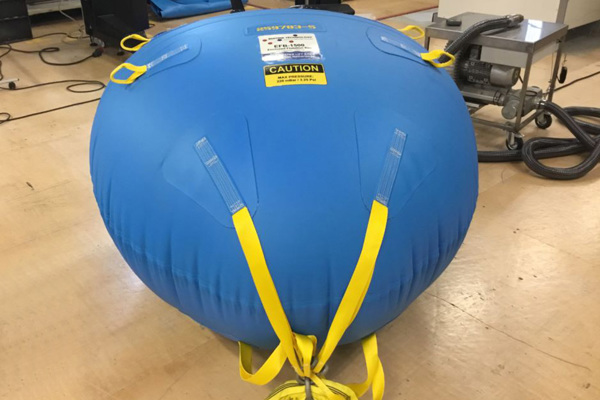

Once our analysis and subsequent design of the solution had been approved, we were commissioned to produce the flotation bags. You can see the results below.
